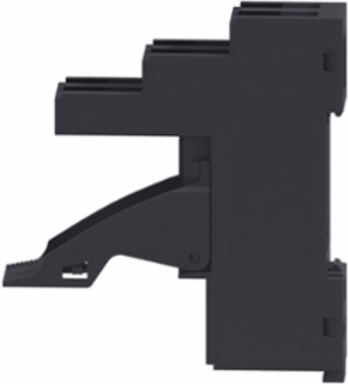

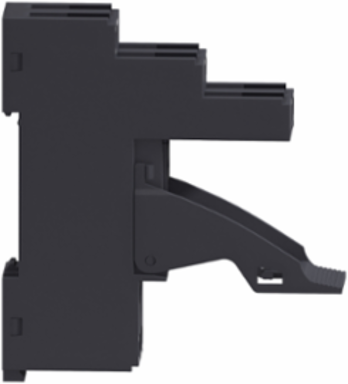

Schneider Electric RGZE1S35M Harmony Electromechanical Relay Socket, 10A, SPDT, Screw Connection

MPN: RGZE1S35M
PPN: SCH-RGZE1S35M

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$12.22

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

"This Harmony RGZ timing relay socket has separate contact terminals." "It enables quick and easy plug-in installation of relays without the need for tools." "It is compatible with all 1 C/O SPDT RXG relays." "Simple relay retention via clamp allows quick replacement of relays and minimizes machine downtime." 0 0 0 0 0 0 0 0 0 0 0 0|"This Harmony RGZ timing relay socket has separate contact terminals." "It enables quick and easy plug-in installation of relays without the need for tools." "It is compatible with all 1 C/O SPDT RXG relays." "Simple relay retention via clamp allows quick replacement of relays and minimizes machine downtime." 0 0 0 0 0 0 0 0 0 0 0 0

Features

The Schneider Electric RGZE1S35M is a compact, 16mm-wide socket designed specifically for Zelio RSB interface relays. This slim "interface" profile allows Canadian panel builders to pack more control logic into a smaller footprint, making it the ideal solution for modern PLC output expansion or signal isolation where DIN rail space is at an absolute premium.

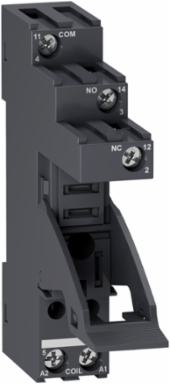

Featuring a separate contact/coil terminal layout, this socket physically isolates the input (coil) terminals from the output (contact) terminals. This logical separation simplifies the wiring process and troubleshooting for industrial electricians, reducing the risk of wiring errors and ensuring a clean, professional appearance inside the control cabinet.

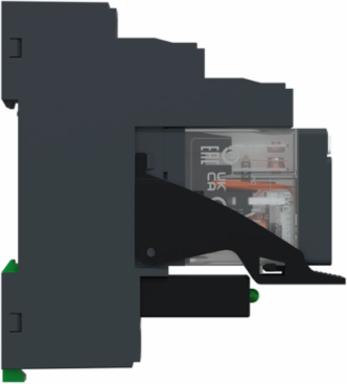

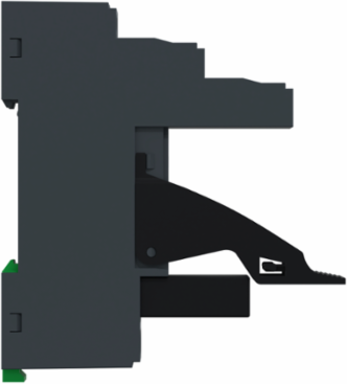

The RGZE1S35M comes equipped with a built-in plastic maintaining clamp (retaining clip). This ensures that the RSB relay remains firmly seated in the socket even in high-vibration industrial environments, such as those found in mining, food processing, or HVAC equipment, preventing intermittent connections and costly downtime.
This universal socket is compatible with both 1-C/O (12A) and 2-C/O (8A) RSB interface relays. Whether you need a high-capacity single contact or dual signal outputs, this single socket part number covers both requirements, allowing you to standardize your inventory across various Canadian automation projects.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, Singapore, United States

Physical Attributes

Wire Stripping Length	6-7 mm

Complementary Attributes

Line Rated Current	10 A

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	CE, EAC, UL, CSA, DNV-GL
Carbon Footprint Of The Distribution Phase [A4]	0.009584501303757133, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.00028252621852502545, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-07-28
Stocking Flag	Y
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contacts Type And Composition	1 C/O
Fixing Mode	clip-on (35 mm symmetrical DIN rail)screw (panel)
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony Electromechanical Relays
Screw Type	M3
Sustainable Packaging	Yes
Pep Code	ENVPEP2502016EN
Pep Verification Date	2025-01-02
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
[Ue] Rated Operational Voltage	250 V IEC300 V UL
[Uimp] Rated Impulse Withstand Voltage	6 kV between coil and contact with reinforced insulation4 kV between terminals and DIN rail with basic insulation
Package Weight(Lbs)	36.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Connections - Terminals	screw connectors, screw terminals, 1 x 0.34...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable endscrew terminals, 2 x 0.34...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endscrew terminals, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable endscrew terminals, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.11415302636530504
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.3 kg CO2 eq., 0.32296743956459056
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Contact Terminal Arrangement	separate
Dielectric Strength	5 kV between coil and contact with reinforced insulation3 kV between terminals and DIN rail with basic insulation
Overvoltage Category	III
Product Or Component Type	socket
Returnability	Yes
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	0.4 kg CO2 eq.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

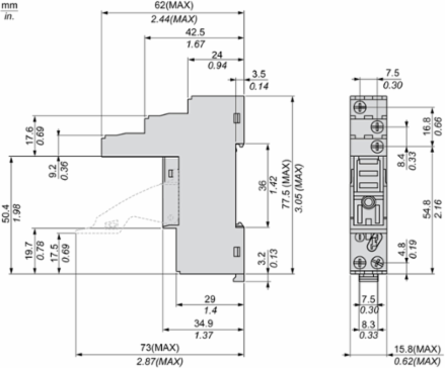

Functional-unit Description	RGZ socket that can be mounted with RXG relays to facilitate electrical connection of relay and also to provide structural support to relay via attachment to DIN rail during 20 years with the following dimensions 77.5 mm x 73 mm x 15.8 mm and product is adhering to international standards like CSA C22.2 No 14, IEC 61984 ,UL 508.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; High voltage; 2020; China, CN
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %	98
[Ui] Rated Insulation Voltage	250 V
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536698000

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C, -40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.4469874934521778
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	plug-in relay RXG 1 C/O
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Code	ENVPEP2502016EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C, -40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2502016EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Reach Free Of Svhc	Yes
Relative Humidity	10-85 %
Pep Verification Date	2025-01-02
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
