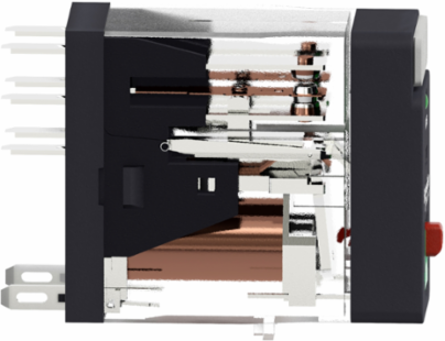

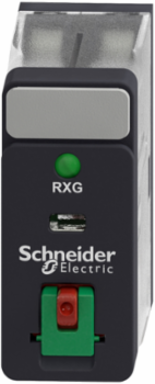

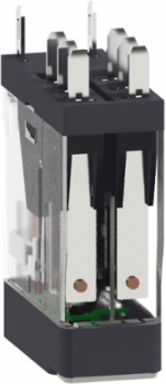

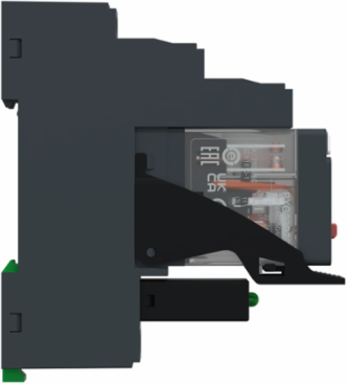

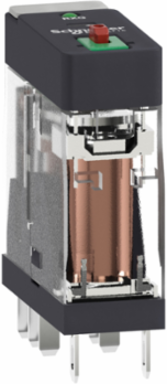

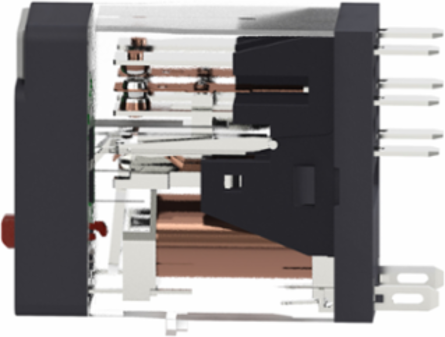

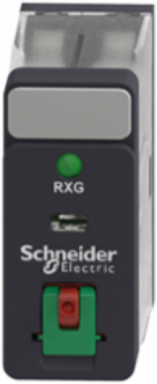

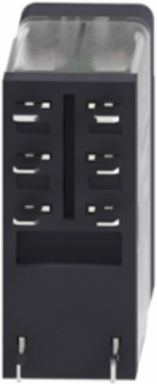

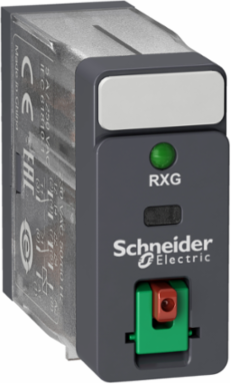

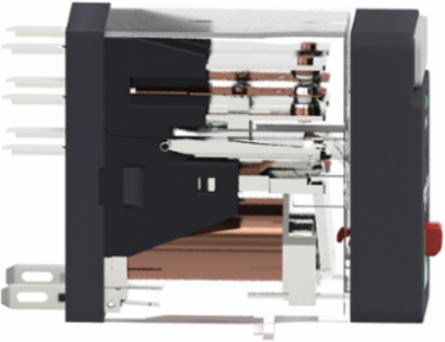

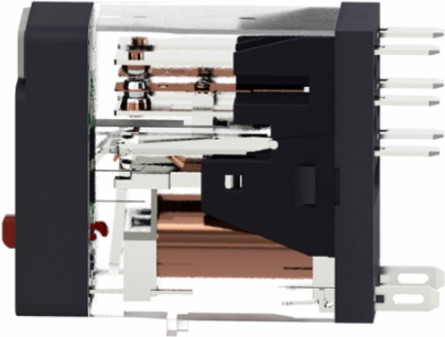

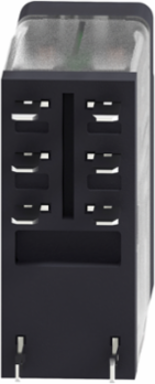

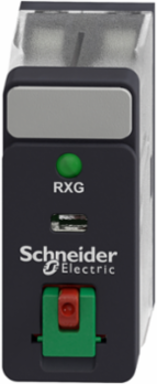

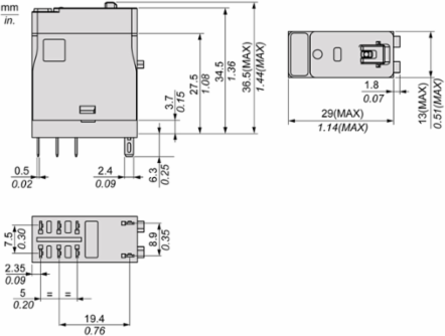

Schneider Electric RXG22P7 Harmony Electromechanical Plug-in Relay 5A 230V AC with LED Indicator
- MPN: RXG22P7
- PPN: SCH-RXG22P7
- UNSPSC: 39122326
CAD
$23.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
"This Harmony RXG plug-in relay socket has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button and LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Weight
- 0.02 kg
- Product Or Component Type
- plug-in relay
- Contacts Type And Composition
- 2 C/O
- Device Short Name
- RXG
Range Of ProductHarmony Electromechanical Relays
Series Nameinterface relay
Local Signallingflag
[Ithe] Conventional Enclosed Thermal Current5 A -40-55 °C
Complementary
- Utilisation Coefficient
- 20 %
- Safety Reliability Data
- B10d = 100000
- Average Consumption
- 0.82 VA 60 Hz
- Operating Rate
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Protection Category
- RT I
- Contacts Material
- silver alloy (AgSnO2In2O3)
- Reset Time
- 20 ms
- Dielectric Strength
- 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation
- Net Weight
- 0.02 kg
- Maximum Switching Voltage
- 250 V AC || 30 V DC
- Device Presentation
- complete product
- [Ie] Rated Operational Current
- 5 A 30 V DC) UL || 5 A 30 V DC) IEC || 5 A 250 V AC) IEC || 5 A 250 V AC) UL
- Electrical Durability
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- Resistance
- 23500 Ohm +/- 15 %
- Mounting Position
- any position
- Load Current
- 5 A 250 V AC
- Minimum Switching Capacity
- 50 mW at 10 mA, 5 V DC
- Contact Resistance
- 100 mOhm
Maximum Switching Capacity1250 VA
[Uc] Control Circuit Voltage230 V AC 50/60 Hz
Insulation Resistance1000 MOhm at 500 V DC
Torque Value0.8 N.m
Test Levelslevel A group mounting
Pollution Degree2
Shock Resistance20 gn in operation || 100 gn not in operation
Status Ledwith
Colour Of Coverstandard
Control Typelockable test button
Electrical Insulation Classclass F
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
Mechanical Durability10000000 cycles
Control Circuit Voltage Limits0.8...1.1 Uc AC
Overvoltage CategoryIII
Drop-Out Voltage Threshold>= 0.3 Uc AC
Operating Time20 ms
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406006EN
- Toxic Heavy Metal Free
- Yes
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
Circularity ProfileN/A
Environment
- Product Certifications
- UL || EAC || CE || CSA || DNV-GL
- Standards
- CSA C22.2 No 14 || UL 508 || IEC 61810-1
- Relative Humidity
- 10-85 %
- Ip Degree Of Protection
- IP40
Ambient Air Temperature For Operation-40-70 °C
Vibration Resistance3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Ambient Air Temperature For Storage-40-85 °C
Loading video…
