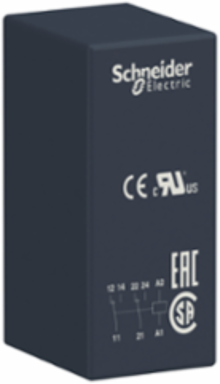

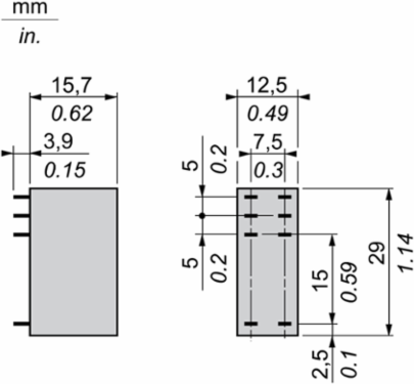

Schneider Electric RSB2A080P7 Harmony Plug-In Relay 8A 2CO 230V AC IP40
- MPN: RSB2A080P7
- PPN: SCH-RSB2A080P7
CAD
$15.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony RSB interfacing plug-in relay has a control coil voltage of 230V AC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, Brazil, France
Complementary Attributes
- Control Circuit Type
- AC
- Maximum Switching Capacity
- 2000 VA/224 W
- Minimum Switching Capacity
- 120 mW 10 mA, 12 V
- Rated Current
- 8 A
Line Rated Current8 A
Maximum Switching Voltage300 V DC IEC
Minimum Switching Current10 mA
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- without lockable test button, without lockable test button
- Operating Time
- 20 ms operating, 20 ms reset
- Certificate Agency
- CSA, EAC, UL
- Drop-out Voltage Threshold
- >= 0.15 Uc AC, >= 0.15 Uc AC>= 0.15 Uc AC, >= 0.15 Uc AC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.0233806246, 0 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.1 kg CO2 eq., 0.1246704908
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2403026EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Coil Consumption
- 0.75 VA AC
- Compatibility Code
- RSB
- Contacts Type And Composition
- 2 C/O
- Electrical Durability
- 100000 cycles, 8 A at 250 V, AC-1 NO100000 cycles, 4 A at 250 V, AC-1 NC
- Mechanical Durability
- 5000000 cycles
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Category
- RT I
- Relay Type
- interface relay
- Safety Reliability Data
- B10d = 100000
- Series Name
- RSB series
- Shock Resistance
- 10 gn 11 ms) not operating IEC 60068-2-275 gn 11 ms) in operation IEC 60068-2-27
- Status Led
- without
- Switching Voltage
- 12 V
- Total Lifecycle Carbon Footprint
- 12 kg CO2 eq.
- Pep Code
- ENVPEP2403026EN
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- [Ie] Rated Operational Current
- 4 A AC-1/DC-1) NC IEC8 A AC-1/DC-1) NO IEC
- [Ue] Rated Operational Voltage
- 184...345 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 3.6 kV IEC 61000-4-5
- Package Weight(Lbs)
- 13.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Rate<= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Vibration Resistance+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
[Uc] Control Circuit VoltageAC 50/60 Hz, 230 V
Carbon Footprint Of The Distribution Phase [A4]0.0018307075, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0000899962
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]12 kg CO2 eq., 11.6257230294
Local Publishable Date2026-03-26
Stocking FlagY
Service Catalog ItemFinished good
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Resistance33000 Ohm AC 20 °C +/- 10 %
Contacts Materialsilver alloy (AgNi)
Dielectric Strength1000 V AC between contacts2500 V AC between poles5000 V AC between coil and contact
Load Current8 A 250 V AC8 A 28 V DC
Operating Positionany position
Product Or Component Typeplug-in relay
Range Of ProductHarmony Electromechanical Relays
ReturnabilityYes
Sale Per Indivisible Quantity10
Shape Of Pinflat (PCB type)
Software Versionv5.9.4
Sustainable PackagingNo
Test Levelslevel A group mounting
Control Circuit Voltage 10230 V AC 50/60 Hz
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe main purpose of the RSB Interface plug-in Relay is having at least 2 C/O contacts for switching by a small control signal controlling a larger load current or voltage. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance.
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Recyclability Potential In %75
[Ithe] Conventional Enclosed Thermal Current8 A -40-40 °C
[Ui] Rated Insulation Voltage400 V IEC 60947
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490075
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C AC), -40-70 °C AC)-40-70 °C AC), -40-70 °C AC)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 11.7756948484
- Environmental Disclosure
- ENVPEP2403026EN
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2403026EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2403026EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
Presentation Of Legendwithout
