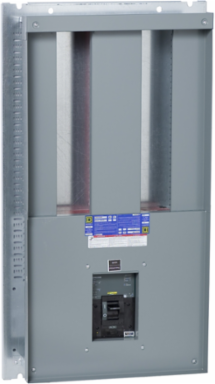

Square D HCJ23734M I-Line Panelboard 400A, 45 Inch Bar Length, 3 Phases, 26.45 Inch Width
- MPN: HCJ23734M
- UPC: 785901316527
- PPN: SCH-HCJ23734M
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric HCJ23734M I-Line Panelboard is engineered for robust electrical distribution, offering a significant 400A capacity for demanding applications. With a bar length of 45 inches and designed for three-phase systems, this panelboard provides efficient power management and easy installation for various commercial and industrial environments. Its compact 26.45-inch width allows it to fit seamlessly into tighter spaces without compromising functionality, making it an excellent choice for modern electrical systems needing reliable performance and flexibility.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth8.75 in
Physical Attributes
- Bar Length
- 45 in
Complementary Attributes
- Line Rated Current
- 400 A
Important Information Attributes
- Circuit Breaker Type
- B-Frame, J-frame, H-frame, Q-Frame, QO
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 67 kg CO2 eq., 67.17257975967145
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 273 kg CO2 eq., 273.24346666614906
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2202
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Localisation On Device
- interior
- Phase
- 3 phase
- Product Destination
- enclosure HCJ 32 in 73 in 9.5 in
- Range Of Product
- I-Line
- Software Version
- v6.2.5-6
- Tightening Torque
- 28.47-28.47 N.m 13.3-151 mm² (6 AWG...300 kcmil)
- Pep Code
- ENVPEP2509033_V1
- Pep Verification Date
- 2025-11-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- [A5]
- Energy Model - End Of Life [C1-c4]
- [C1 - C4]
- Height Nominal
- 48.02 in
- Certificate Agency
- cULus
- Package Weight(Lbs)
- 46.266 kg
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]0, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.10858058017084281, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]293 kg CO2 eq., 293.2702034455146
Local Publishable Date2025-11-13
Stocking FlagN
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Enclosure Typedistribution enclosure
Load Center Typemain lugs
Materialpainted steel
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeinteriors
ReturnabilityYes
Sustainable PackagingNo
Total Lifecycle Carbon Footprint634 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionAccommodate and protect control, command and protection devices in a single interior panelboard (2184.4 mm x 1066.8 mm x 241.3 mm ) with rated current In = 400 A, degree of protection IP = IP30, degree of protection IK = IK07, for a reference service life of 20 years, in commercial/industrial application. The product is passive (no operational energy use)
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %78
Width Nominal26.45 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538100000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 633.794830451506
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2509033_V1
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP2509033_V1
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-11-10
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Phase
- 3 phase
- Range Of Product
- I-Line
Product Or Component Typeinteriors
