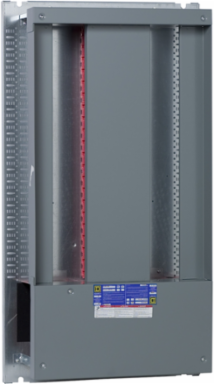

Square D HCJ32736 I-Line Panelboard 600A Main Lugs, 63 Inch CB Space, 32W x 73H x 9-1/2D
- MPN: HCJ32736
- UPC: 785901237211
- PPN: SCH-HCJ32736
CAD
$2074.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This I-Line panelboard by Schneider Electric provides robust electrical management with a 600A main lug configuration, ensuring reliable distribution and performance across your electrical system. With a spacious 63-inch circuit breaker space, it allows for flexible installation options, accommodating various needs for circuit protection. Measuring 32 inches wide, 73 inches high, and 9-1/2 inches deep, this panelboard is designed to fit seamlessly into your electrical infrastructure while providing efficient space utilization. Built with Schneider Electric's commitment to quality, this panelboard is an essential component for maintaining safety and efficiency in industrial and commercial applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth8.7 in
Physical Attributes
- Bar Length
- 63 in
Complementary Attributes
- Line Rated Current
- 600 A
Important Information Attributes
- Circuit Breaker Type
- B-Frame, J-frame, H-frame, Q-Frame, QO
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 67 kg CO2 eq., 67.17257975967145
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 273 kg CO2 eq., 273.24346666614906
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1920
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Enclosure Type
- distribution enclosure
- Localisation On Device
- interior
- Phase
- 3 phase
- Product Destination
- enclosure HCJ 32 in 73 in 9.5 in
- Range Of Product
- I-Line
- Software Version
- v6.2.5-6
- Tightening Torque
- 37.96-37.96 N.m (2/0 AWG...500 kcmil)
- Pep Code
- ENVPEP2509033_V1
- Pep Verification Date
- 2025-11-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- [A5]
- Energy Model - End Of Life [C1-c4]
- [C1 - C4]
- Height Nominal
- 48.02 in
- Certificate Agency
- cULus
- Package Weight(Lbs)
- 46.266 kg
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]0, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.10858058017084281, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]440 kg CO2 eq., 439.9053051682718
Local Publishable Date2025-11-13
Stocking FlagN
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Load Center Typemain lugs
Materialpainted steel
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeinteriors
ReturnabilityYes
Sustainable PackagingNo
Total Lifecycle Carbon Footprint780 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionAccommodate and protect control, command and protection devices in a single interior panelboard (2184.4 mm x 1066.8 mm x 241.3 mm ) with rated current In = 400 A, degree of protection IP = IP30, degree of protection IK = IK07, for a reference service life of 20 years, in commercial/industrial application. The product is passive (no operational energy use)
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %78
Width Nominal26.44 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109150
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 780.4299321742631
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-11-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2509033_V1
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2509033_V1
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 3 phase
- Range Of Product
- I-Line
Product Or Component Typeinteriors
