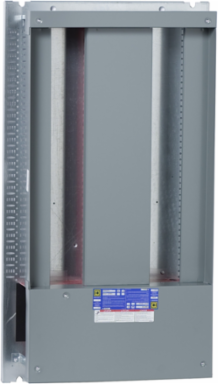

Square D HCJ32738 I-Line Panelboard 800A Main Lugs 63 Inch CB Space 32 Inch W x 73 Inch H box
- MPN: HCJ32738
- UPC: 785901237235
- PPN: SCH-HCJ32738
CAD
$2810.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for optimal performance in demanding environments, the I-Line Panelboard from Schneider Electric is a robust solution for managing electrical distribution. With an impressive 800A main lug rating, this panelboard is equipped to handle substantial power loads while providing versatile connectivity. Its thoughtful design includes 63 inches of circuit breaker space, making it suitable for a variety of applications, while the compact dimensions of 32 inches in width and 73 inches in height ensure it fits seamlessly into existing infrastructures. This panelboard not only enhances operational reliability but also contributes to effective space management in industrial settings.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 8.7 in |
|---|
Physical Attributes
| Bar Length | 63 in |
|---|
Complementary Attributes
| Line Rated Current | 800 A |
|---|
Important Information Attributes
| Circuit Breaker Type | B-Frame, J-frame, H-frame, Q-Frame, QO |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 107 kg CO2 eq., 106.76546527156162 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 337 kg CO2 eq., 337.3317872660699 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2541 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Enclosure Type | distribution enclosure |
| Localisation On Device | interior |
| Phase | 3 phase |
| Product Destination | enclosure HCJ 32 in 73 in 9.5 in |
| Range Of Product | I-Line |
| Software Version | v6.2.5-6 |
| Tightening Torque | 37.96-37.96 N.m 85-380 mm² (3/0 AWG...750 kcmil) |
| Pep Code | ENVPEP2509034_V1 |
| Pep Verification Date | 2025-11-10 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 48.02 in |
| Certificate Agency | cULus |
| Package Weight(Lbs) | 66.224 kg |
| Warranty (In Months) | 18 |
| Carbon Footprint Of The Distribution Phase [A4] | 364.35415312092016, 364 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase [A5] | 0.10361452602414814, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 437 kg CO2 eq., 437.10425260432226 |
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Load Center Type | main lugs |
| Material | painted steel |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | interiors |
| Returnability | Yes |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 1 246 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Accommodate and passively protect control, command and protection devices in a single interior panelboard (2184.4 mm x 1066.8 mm x 241.3 mm) with rated current In = 800 A, degree of protection IP = IP30, degree of protection IK = IK07, for a reference service life of 20 years, in commercial/industrial application. The product is passive (no operational energy use). |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; United States, US |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 67 |
| Width Nominal | 26.44 in |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538100000 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 1245.659272788898 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-11-10 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2509034_V1 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2509034_V1 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Phase | 3 phase |
|---|---|
| Range Of Product | I-Line |
| Product Or Component Type | interiors |
|---|
