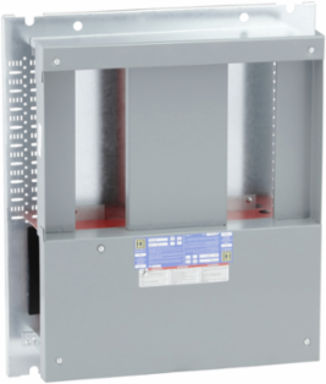

Square D HCJ14486CU I-Line Panelboard 600A Main Lugs 27 Inch CB Space, 3 Phase
Square D HCJ14486CU I-Line Panelboard 600A Main Lugs 27 Inch CB Space, 3 Phase
- MPN: HCJ14486CU
- UPC: 785901800712
- PPN: SCH-HCJ14486CU
- UNSPSC: 39121103
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2122.80/ EA
Description
Square D™ I-Line Power Distribution Panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system. I-line power distribution panelboards are for use on AC or DC systems. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. This HCJ I-Line panelboard interior is a 600A and has main lugs. This product is certified to cULus & CE standards. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139.
Features
- 600VAC, 250VDC maximum
- Fully rated and series rated system available
- Dead front trim is easily installed
- Factory assembled or ready to install
- UL Listed
Specifications
Physical Attributes
- Bar Length
- 27 in
Conformance Attributes
- Product Certifications
- cULus
Complementary Attributes
- Line Rated Current
- 600 A
Important Information Attributes
- Circuit Breaker Type
- B-Frame, J-frame, H-frame, Q-Frame, QO
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 47 kg CO2 eq., 46.801785709613334
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 148 kg CO2 eq., 147.8730035083053
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Enclosure Type
- distribution enclosure
- Material
- painted steel
- Phase
- 3 phase
- Product Destination
- enclosure HCJ 32 in 48 in 9.5 in
- Range Of Product
- I-Line
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 682 kg CO2 eq.
- Stocking Flag
- N
- Pep Code
- ENVPEP2509034EN
- Pep Verification Date
- 2025-11-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Global Commercial Status
- Commercialised
Carbon Footprint Of The Distribution Phase A4159.71854712944418, 160 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.04542053772772742, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6328 kg CO2 eq., 327.8281894532417
Local Publishable Date2025-11-13
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Load Center Typemain lugs
Package Weight Lbs29.03 kg
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeinteriors
ReturnabilityYes
Tightening Torque37.96-37.96 N.m (AWG 2/0...500 kcmil)
Medium DescInterior, I-Line Panelboard, HCJ, 600A, main lugs, 27in CB space, for 32in W x 48in H x 9.5in D box, Cu bus
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionAccommodate and passively protect control, command and protection devices in a single interior panelboard (2184.4 mm x 1066.8 mm x 241.3 mm) with rated current In = 800 A, degree of protection IP = IP30, degree of protection IK = IK07, for a reference service life of 20 years, in commercial/industrial application. The product is passive (no operational energy use).
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; United States, US
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; United States, US
Localisation On Deviceinterior
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 682.2669463383322
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-11-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP2509034EN
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2509034EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 3 phase
- Range Of Product
- I-Line
Product Or Component Typeinteriors
Specifications
- Depth
- 8.7 in
