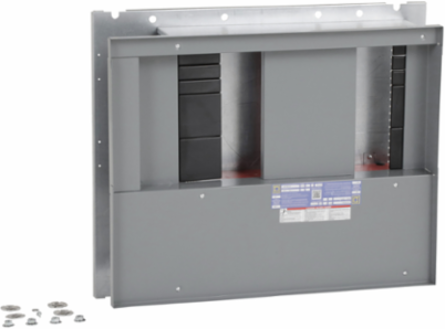

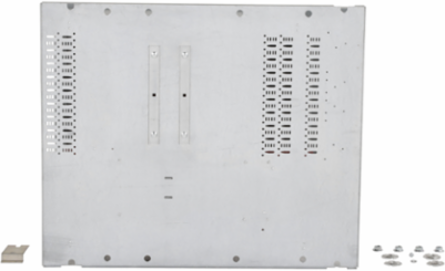

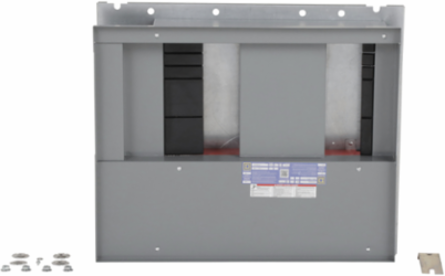

Square D HCP145012N I-Line Panelboard 1200A with Main Lugs, 27 Inch CB Space, Cu Bus
- MPN: HCP145012N
- UPC: 785901511601
- PPN: SCH-HCP145012N
CAD
$2710.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Square D™ I-Line Power Distribution Panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system. I-line power distribution panelboards are for use on AC or DC systems. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. This HCP I-Line panelboard interior is a 1200A and has main lugs. This product is certified to cULus & CE standards. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Physical Attributes
- Bar Length
- 27 in
Complementary Attributes
- Line Rated Current
- 1200 A
Important Information Attributes
- Carbon Footprint Of The Distribution Phase [A4]
- 331.9152776860182, 332 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.09438960385939854, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 656 kg CO2 eq., 655.6563789064834
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- interiors
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2509034_V1
- Pep Verification Date
- 2025-11-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 30 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Carbon Footprint Of The End-of-life Phase [C1 To C4]97 kg CO2 eq., 97.26001130863085
Carbon Footprint Of The Manufacturing Phase [A1 To A3]307 kg CO2 eq., 307.29874459693565
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1847
China Rohs In ScopeNo
Without Single Use PlasticNo
Product Kit IdentifierN
Load Center Typemain lugs
Product Destinationenclosure HCP 42 in 50 in
Range Of ProductI-Line
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint1 392 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionAccommodate and passively protect control, command and protection devices in a single interior panelboard (2184.4 mm x 1066.8 mm x 241.3 mm) with rated current In = 800 A, degree of protection IP = IP30, degree of protection IK = IK07, for a reference service life of 20 years, in commercial/industrial application. The product is passive (no operational energy use).
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %67
Width Nominal35.47 in
Package Weight(Lbs)60.328 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 1392.2248021019277
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2509034_V1
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP2509034_V1
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-11-10
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- interiors
Range Of ProductI-Line
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
