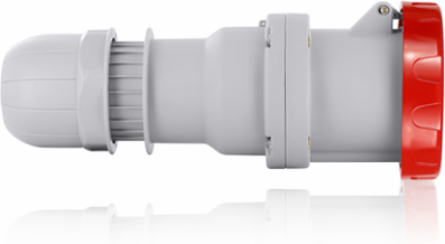

Leviton W3125-C11 International Pin & Sleeve Connector 125A 440-460V IP66 Watertight Red
- MPN: W3125-C11
- UPC: 078477677940
- PPN: LEV-W3125-C11
CAD
$653.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

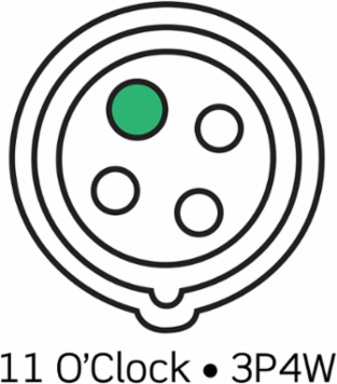

125 Amp, 440-460 Volt, 3P+E (3P, 4W), Clock Position 11, IEC/EN 60309-1 & 60309-2, International Configuration Connector, Industrial Grade, IP66/67, Watertight - RED
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy
RoHS CompliantTrue
Standards and Certifications
- CE
- Marked
- NOM Certified
- Yes
IEC Rating60309-1 and 60309-2
RETIE CertifiedYes
Material Specifications
- Contacts
- Nickel Plated Brass
HousingHalogen-free engineering polymer
Mechanical Specifications
- Cord Grip Range (in)
- 1.024 - 1.90
Terminal Accom.#6 - #1 AWG
Product Features
- Color
- Red
- Device Type
- Connector
ConfigurationInternational
Environmental Specifications
- IK Rating
- IK08
- Operating Temperature
- -25°C to 40°C
IP RatingIP66/IP67
Electrical Specifications
- Amperage
- 125 A
- Pole
- 3
- Wire
- 4
Frequency60Hz
Voltage440-460 VAC
