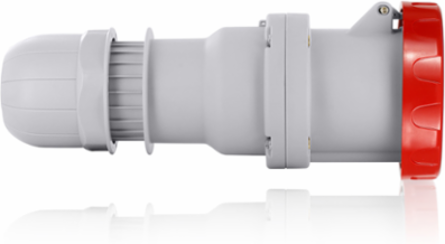

Leviton W4125-C6 125 Amp International Pin & Sleeve Connector, 346-415 Volt, IP66/IP67, Red
- MPN: W4125-C6
- UPC: 078477678107
- PPN: LEV-W4125-C6
CAD
$702.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

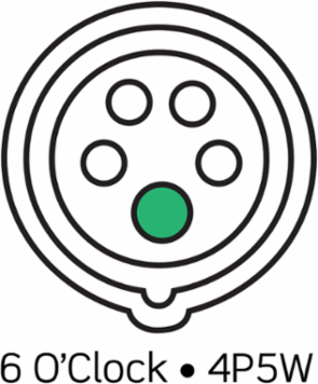

125 Amp, 346-415 Volt, 3P+N+E (4P, 5W), Clock Position 6, IEC/EN 60309-1 & 60309-2, International Configuration Connector, Industrial Grade, IP66/67, Watertight - RED
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy
RoHS CompliantTrue
Standards and Certifications
- CE
- Marked
- NOM Certified
- Yes
IEC Rating60309-1 and 60309-2
RETIE CertifiedYes
Material Specifications
- Contacts
- Nickel Plated Brass
HousingHalogen-free engineering polymer
Mechanical Specifications
- Cord Grip Range (in)
- 1.024 - 1.90
Terminal Accom.#6 - #1 AWG
Product Features
- Color
- Red
- Device Type
- Connector
ConfigurationInternational
Environmental Specifications
- IK Rating
- IK08
- Operating Temperature
- -25°C to 40°C
IP RatingIP66/IP67
Electrical Specifications
- Amperage
- 125 A
- Pole
- 4
- Wire
- 5
Frequency50/60Hz
Voltage346-415 VAC
