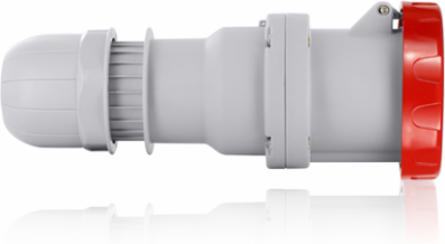

Leviton W463-C6 International Pin & Sleeve Connector

International Pin & Sleeve Connector - https://media.province-electric.com/476/csv_leviton/medium/172098d49faf047cfe292c0bc7c0bd927ba0a24f-medium.png

International Pin & Sleeve Connector

International Pin & Sleeve Connector

Leviton W463-C6 International Pin & Sleeve Connector

MPN: W463-C6
UPC: 078477677834
PPN: LEV-W463-C6

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$227.66/ EA

Loading add to cart quantity...

Description

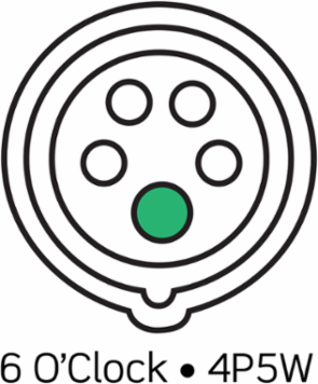

63 Amp, 346-415 Volt, 3P+N+E (4P, 5W), Clock Position 6, IEC/EN 60309-1 & 60309-2, International Configuration Connector, Industrial Grade, IP66/67, Watertight - RED

Specifications

Standards and Certifications

CE: Marked

NOM Certified: Yes

IEC Rating60309-1 and 60309-2

RETIE CertifiedYes

Material Specifications

Contacts: Nickel Plated Brass

HousingHalogen-free engineering polymer

Mechanical Specifications

Cord Grip Range (in): .669 - 1.22

Torque Range: Terminal screws 7in-lbs..Cable Clamp 66.4 in-lbs

Terminal Accom.#10 - #6 AWG

Specifications

Country of Origin: Italy

RoHS CompliantTrue

Product Features

Color: Red

Device Type: Connector

ConfigurationInternational

Environmental Specifications

IK Rating: IK08

Operating Temperature: -25°C to 40°C

IP RatingIP66/IP67

Electrical Specifications

Amperage: 63 A

Pole: 4

Wire: 5

Frequency50/60Hz

Voltage346-415 VAC
