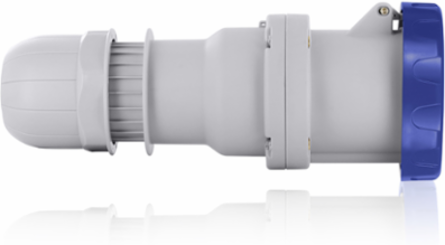

Leviton W463-C9 International Pin & Sleeve Connector 63 Amp, 208-250 Volt, IP66, Blue
- MPN: W463-C9
- UPC: 078477677889
- PPN: LEV-W463-C9
CAD
$228.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

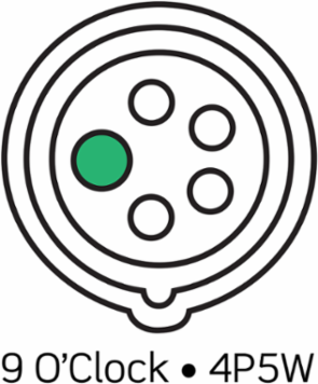

63 Amp, 208-250 Volt, 3P+N+E (4P, 5W), Clock Position 9, IEC/EN 60309-1 & 60309-2, International Configuration Connector, Industrial Grade, IP66/67, Watertight - BLUE
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy
RoHS CompliantTrue
Standards and Certifications
- CE
- Marked
- NOM Certified
- Yes
IEC Rating60309-1 and 60309-2
RETIE CertifiedYes
Material Specifications
- Contacts
- Nickel Plated Brass
HousingHalogen-free engineering polymer
Mechanical Specifications
- Cord Grip Range (in)
- .669 - 1.22
Terminal Accom.#10 - #6 AWG
Product Features
- Color
- Blue
- Device Type
- Connector
ConfigurationInternational
Environmental Specifications
- IK Rating
- IK08
- Operating Temperature
- -25°C to 40°C
IP RatingIP66/IP67
Electrical Specifications
- Amperage
- 63 A
- Pole
- 4
- Wire
- 5
Frequency50/60Hz
Voltage208/250 VAC
