Leviton

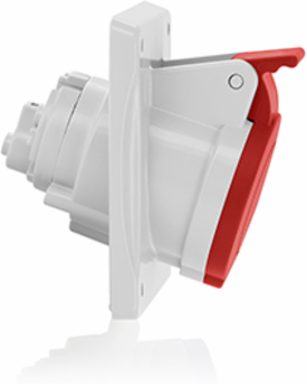

Leviton S332-R6 International Pin & Sleeve Receptacle, 32 Amp, 380-415 Volt, IP44, Red

International Pin & Sleeve Receptacle, 32 Amp, 380-415 Volt, IP44, Red
International Pin & Sleeve Receptacle, 32 Amp, 380-415 Volt, IP44, Red
  • MPN: S332-R6
  • UPC: 078477678770
  • PPN: LEV-S332-R6

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$169.21/ EA

Description

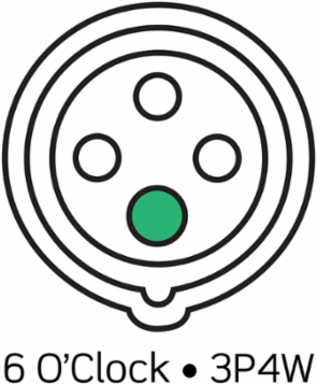

32 Amp, 380-415 Volt, 3P+E (3P, 4W), Clock Position 6, IEC/EN 60309-1 & 60309-2, International Configuration Panel Mounting Socket Outlet, Industrial Grade, IP44, Splashproof - RED

Specifications

Standards and Certifications

CE
Marked
NOM Certified
Yes
IEC Rating60309-1 and 60309-2
RETIE CertifiedYes

Material Specifications

Contacts
Nickel Plated Brass
HousingHalogen-free engineering polymer

Mechanical Specifications

Terminal Accom.
14-8 AWG

Specifications

Country of Origin
Slovakia
RoHS CompliantTrue

Product Features

Color
Red
Device Type
Receptacle
ConfigurationInternational

Environmental Specifications

IK Rating
IK08
Operating Temperature
-25°C to 40°C
IP RatingIP44

Electrical Specifications

Amperage
32 A
Pole
3
Wire
4
Frequency50/60Hz
Voltage380-415 VAC
