Arlington Industries

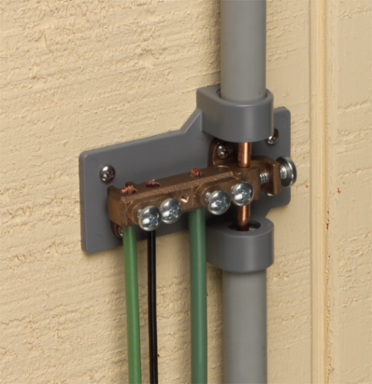

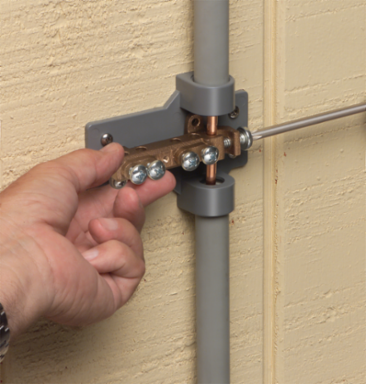

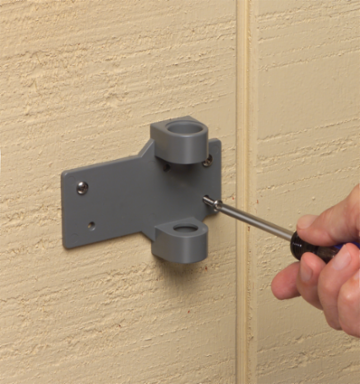

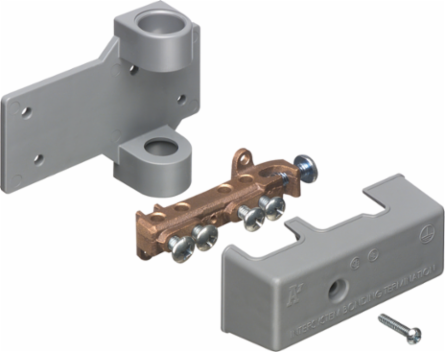

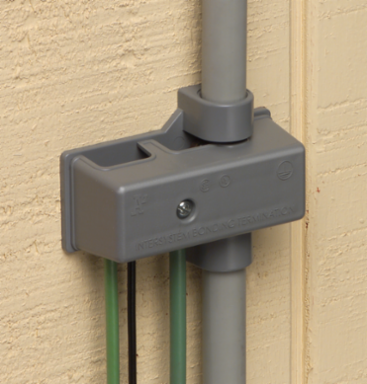

Arlington Industries GBB50P Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #1/0 grounding wire solid or stranded. Bronze with white Cover. Comes with PVC adapter for 1/2" PVC pipe.

Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #1/0 grounding wire solid or stranded. Bronze with white Cover. Comes with PVC adapter for 1/2" PVC pipe.
Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #1/0 grounding wire solid or stranded. Bronze with white Cover. Comes with PVC adapter for 1/2" PVC pipe.
Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #1/0 grounding wire solid or stranded. Bronze with white Cover. Comes with PVC adapter for 1/2" PVC pipe.
Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #1/0 grounding wire solid or stranded. Bronze with white Cover. Comes with PVC adapter for 1/2" PVC pipe.
Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #1/0 grounding wire solid or stranded. Bronze with white Cover. Comes with PVC adapter for 1/2" PVC pipe.
  • MPN: GBB50P
  • UPC: 018997097255
  • PPN: ARL-GBB50P

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$40.48/ EA

Description

Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #1/0 grounding wire solid or stranded. Bronze with white Cover. Comes with PVC adapter for 1/2" PVC pipe.

Specifications

Physical Information

Weight
0.676 lbs/each
Width
4.575"
Material(s)
Bronze (Bridge) / Paintable Plastic (Cover)
Height3.461"
ColorBronze

Technical Information

Application
Provides Reliable Intersystem Bonding Between Power and Communication Grounding Systems
Grounding Electrode
#6 to #1/0 Copper or Aluminum - Solid or Stranded
Pipe Size
1/2" PVC Conduit
Trade Size
#6 to #1/0 Grounding Electrode
Equipment Grounding Conductor#6 to #1/0 Copper or Aluminum - Solid or Stranded
Intersystem Bonding and Grounding Conductors#14 to #4 Copper or Aluminum - Solid or Stranded
Termination Points(4) Four

Basic Information

UPC
018997097255
Standard Packaging
10pcs
Unit Packaging1pc
ListingcULus
