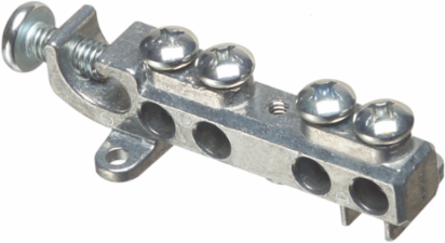

Arlington Industries GB5NC Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Zinc no cover.

Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Zinc no cover.

MPN: GB5NC
UPC: 018997760944
PPN: ARL-GB5NC

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$13.78/ EA

Qty:

Loading add to cart quantity...

Description

Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Zinc no cover.

Specifications

Basic Information

UPC: 018997760944

Standard Packaging: 10pcs

Listing: cULus

Unit Packaging10pcs

Country of OriginUnited States

Physical Information

Weight: 0.324 lbs/each

Width: 0.872"

Material(s): Zinc

Height1.409"

ColorSilver

Technical Information

Application: Provides reliable intersystem bonding between power and communication grounding systems. Without the cover and screw, and bulk-packaged to lower the cost.

Grounding Electrode: #6 to #2 Copper or Aluminum - Solid or Stranded

Termination Points: (4) Four

Equipment Grounding Conductor#6 to #2 Copper or Aluminum - Solid or Stranded

Intersystem Bonding and Grounding Conductors#14 to #4 Copper or Aluminum - Solid or Stranded

Trade Size#6 to #2 Grounding Electrode

Downloads
