Arlington Industries

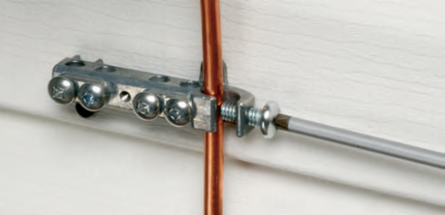

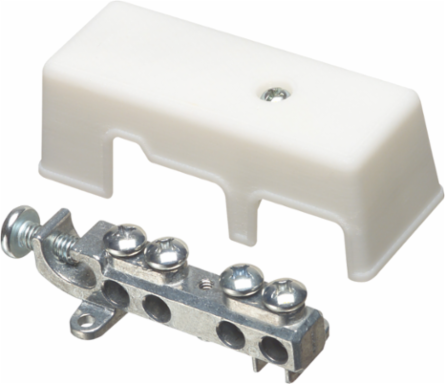

Arlington Industries GB5 Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Zinc with white Cover.

Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Zinc with white Cover.
Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Zinc with white Cover.
Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Zinc with white Cover.
Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Zinc with white Cover.
Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Zinc with white Cover.
  • MPN: GB5
  • UPC: 018997760951
  • PPN: ARL-GB5

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$18.33/ EA

Description

Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Zinc with white Cover.

Specifications

Basic Information

UPC
018997760951
Standard Packaging
10pcs
Listing
cULus
Unit Packaging1pc
Country of OriginUnited States

Physical Information

Weight
0.500 lbs/each
Width
4.398"
Material(s)
Zinc (Bridge) / Paintable Plastic (Cover)
Height1.497"
ColorSilver

Technical Information

Application
Provides Reliable Intersystem Bonding Between Power and Communication Grounding Systems
Grounding Electrode
#6 to #2 Copper or Aluminum - Solid or Stranded
Termination Points
(4) Four
Equipment Grounding Conductor#6 to #2 Copper or Aluminum - Solid or Stranded
Intersystem Bonding and Grounding Conductors#14 to #4 Copper or Aluminum - Solid or Stranded
Trade Size#6 to #2 Grounding Electrode

Downloads
