Arlington Industries

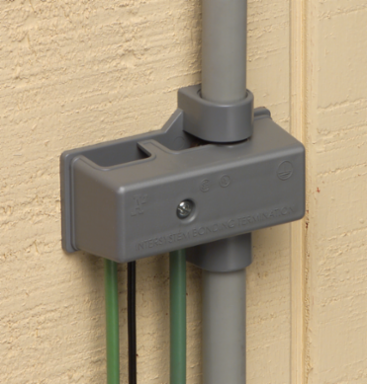

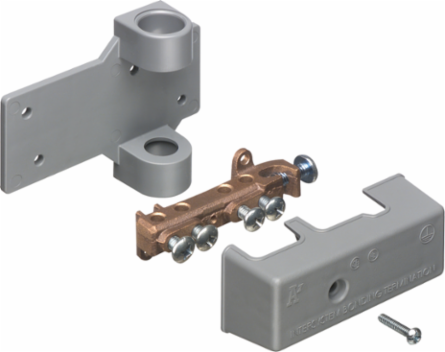

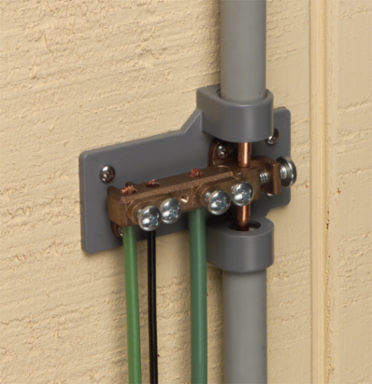

Arlington Industries GBB5P Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Bronze with white Cover. Comes with PVC adapter for 1/2" PVC pipe.

Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Bronze with white Cover. Comes with PVC adapter for 1/2" PVC pipe.
Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Bronze with white Cover. Comes with PVC adapter for 1/2" PVC pipe.
Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Bronze with white Cover. Comes with PVC adapter for 1/2" PVC pipe.
Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Bronze with white Cover. Comes with PVC adapter for 1/2" PVC pipe.
Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Bronze with white Cover. Comes with PVC adapter for 1/2" PVC pipe.
  • MPN: GBB5P
  • UPC: 018997097217
  • PPN: ARL-GBB5P

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$40.25/ EA

Description

Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Ataches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Bronze with white Cover. Comes with PVC adapter for 1/2" PVC pipe.

Specifications

Technical Information

Application
Provides Reliable Intersystem Bonding Between Power and Communication Grounding Systems
Grounding Electrode
#6 to #2 Copper or Aluminum - Solid or Stranded
Pipe Size
1/2" PVC Conduit
Trade Size
#6 to #2 Grounding Electrode
Equipment Grounding Conductor#6 to #2 Copper or Aluminum - Solid or Stranded
Intersystem Bonding and Grounding Conductors#14 to #4 Copper or Aluminum - Solid or Stranded
Termination Points(4) Four

Physical Information

Weight
0.690 lbs/each
Width
4.575"
Material(s)
Bronze (Bridge) / Paintable Plastic (Cover)
Height3.461"
ColorBronze

Basic Information

UPC
018997097217
Standard Packaging
10pcs
Unit Packaging1pc
ListingcULus
