ABB IPM2Y IPM2Y Foot Switch
ABB IPM2Y IPM2Y Foot Switch
- MPN: IPM2Y
- PPN: ABB-IPM2Y
- UNSPSC: 39122222
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$109.88/ EA
Description

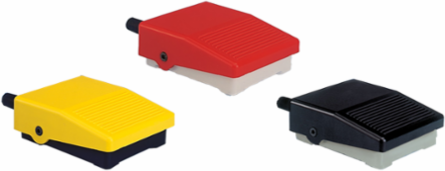

IPM2Y is a Mini Foot Switch with light grey base and yellow ABS cover. The pedal movement is free and the switch is equipped with 1 soft cable entry and 1 N.O or N.C contact.
Specifications
Dimensions
- Product Net Width
- 75 mm
- Product Net Depth / Length
- 101 mm
Product Net Height35 mm
Product Net Weight0.101 kg
Technical
- Action Type of the Contact Element (acc. to IEC 60947-5-1)
- Snap action contacts
- Conventional Free-air Thermal Current (Ith)
- acc. to IEC 60947-5-1, Θ = 40 °C 15 A
- Connecting Terminals (delivered in open position)
- M3 x 0.5 screw with Phillips head n░1 and washer
- Mechanical Durability
- 10 million
- Number of Auxiliary Contacts NO
- 1
- Rated Insulation Voltage (Ui)
- acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 250 V
- Resistance Between Contacts
- 30 E45
Actuation Torqueacc. to IEC 60947-5-1 Min. 1.2 N·m
Contact Element Form (acc. to IEC 60947-5-1)C
Degree of Protectionacc. to IEC 60529 IP40
Number of Auxiliary Contacts NC1
Rated Impulse Withstand Voltage (Uimp)1 kV
Rated Operational Current DC-13 (Ie)(24 V) 4 A
Short-Circuit Protective DevicesgG Type Fuses 10 A
Classifications
- eClass
- V11.1 : 27371218
IDEA Granular Category Code (IGCC)5275 >> Foot switch
Environmental
- Ambient Air Temperature
- Operation -10 ... +70 °CStorage -25 ... +80 °C
RoHS StatusFollowing EU Directive 2011/65/EU
Ordering
- Minimum Order Quantity
- 5 piece
Customs Tariff Number85364900
