ABB IPSZ1A11 IPSZ1A11 Foot Switch
ABB IPSZ1A11 IPSZ1A11 Foot Switch
- MPN: IPSZ1A11
- PPN: ABB-IPSZ1A11
- UNSPSC: 39122222
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$315.20/ EA
Description

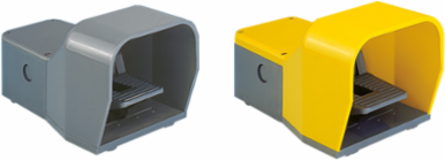

IPSZ1A11 is a Covered Foot Switch with grey base and half red ABS cover. The pedal movement is free and the switch is equipped with 1 Pg16 cable entry and 1 N.O + 1 N.C snap action (Za type) contacts.
Specifications
Dimensions
- Product Net Width
- 140 mm
- Product Net Depth / Length
- 280 mm
Product Net Height85 mm
Product Net Weight0.95 kg
Technical
- Action Type of the Contact Element (acc. to IEC 60947-5-1)
- Snap action contacts
- Climatic Withstand
- according to IEC 68-2-3 and salty mist according to IEC 68-2-11
- Connecting Capacity
- Bar AWG 20 ... AWG 14 mm²Bar 0.5 ... 2.5 mm²
- Connecting Terminals (delivered in open position)
- M3.5 (+,-) screw Phillips head n░1 with captive cable gland
- Electrical Shock Protection acc. to IEC 536
- Double insulation - Class II
- Mechanical Durability
- 30 million
- Number of Auxiliary Contacts NO
- 1
- Pilot Duty UL/CSA
- A600Q600
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV
- Rated Frequency (f)
- Supply Circuit 50 / 60 Hz
- Rated Operational Current DC-13 (Ie)
- (24 V) 6 A(110 V) 0.6 / 66 A(125 V) 0.55 A(250 V) 0.4 A
- Short-Circuit Protective Devices
- gG Type Fuses 10 A
Actuation Torqueacc. to IEC 60947-5-1 Min. 0.25 N·m
Conventional Free-air Thermal Current (Ith)acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Contact Element Form (acc. to IEC 60947-5-1)Za
Degree of Protectionacc. to IEC 60529 IP65
Flammability According to UL94V-0
Number of Auxiliary Contacts NC1
Number and Type of Bottom Cable GlandsPg 16 Cable Gland
Positive Opening Operation of NC Contact(s)Yes
Rated Operational Current AC-15 (Ie)(400 V) NC 4(24 V) 10 A(130 V) 5.5 A
Rated Insulation Voltage (Ui)acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V
Resistance Between Contacts25 E45
Terminal Markingaccording to EN 50013
Classifications
- eClass
- V11.1 : 27371218
IDEA Granular Category Code (IGCC)5275 >> Foot switch
Environmental
- Ambient Air Temperature
- Operation -10 ... +70 °CStorage -30 ... +80 °C
- Resistance to Vibrations acc. to IEC 60068-2-6
- 25g (10 to 500 Hz) no change in position of contacts greater than 100 µs
Resistance to Shock acc. to IEC 60068-2-27Half-sine Pulse for 11 ms, No Change in Contact Position 50 m/s²
RoHS StatusFollowing EU Directive 2011/65/EU
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85364900
