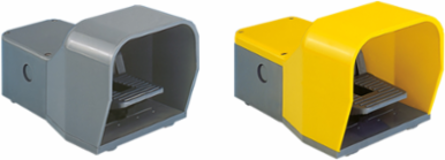

ABB IPSXCD11 IPSXCD11 Foot Switch
- MPN: IPSXCD11
- UPC: 804325400909
- PPN: ABB-IPSXCD11
- UNSPSC: 39122222
CAD
$57.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
IPSXCD11 is a contact bloc for IPS with 1 N.O + 1 N.C slow action (Zb type), overlapping (late closing) contacts.
Specifications
Dimensions
| Product Net Width | 32 mm |
|---|---|
| Product Net Depth / Length | 37 mm |
| Product Net Height | 33 mm |
|---|---|
| Product Net Weight | 0.023 kg |
Technical
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 10 A |
|---|---|
| Mechanical Durability | 30 million |
| Rated Operational Current AC-15 (Ie) | (400 V) NC 4(24 V) 10 A(240 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A(125 V) 0.55 A(250 V) 0.4 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V |
Classifications
| eClass | V11.1 : 27371218 |
|---|
| IDEA Granular Category Code (IGCC) | 5275 >> Foot switch |
|---|
Environmental
| Ambient Air Temperature | Operation -10 ... +70 °CStorage -25 ... +80 °C |
|---|
| RoHS Status | Following EU Directive 2011/65/EU |
|---|
Ordering
| Minimum Order Quantity | 10 piece |
|---|
| Customs Tariff Number | 85364900 |
|---|
