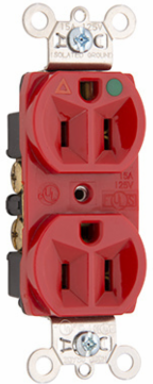

Pass & Seymour IG8200RED Isolated Ground Hospital Grade Receptacle 15A 125V Red, 1.322 Inch Width
- MPN: IG8200RED
- UPC: 785007820461
- PPN: P-S-IG8200RED
CAD
$71.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Isolated Ground Hospital Grade Receptacle 15A 125V Red, 1.322 Inch Width
Features
- IG symbol and Isolated Ground markings for easy identification and circuit delineation.
- Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
- High-impact resistant nylon face resists impacts and scrapes.
- Corrosion-resistant plated steel strap.
- Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
- Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
- Side and internal screw-pressure-plate back wire capability with #14 - #10 AWG copper or copper-clad, solid or stranded wire.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.922 in
- Color
- Red
- Product Line
- Pass & Seymour
- Country of Origin
- Mexico
- Voltage
- 125.0 V
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Number of Receptacles
- 2.0
- Outlet Type
- Hospital Grade
- Outlet Type
- Isolated Ground
- Features
- Brass Mounting Strap
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Dielectric Strength
- Withstands 2000V minimum
Height2.635 in
Width1.322 in
StandardUL498
Amperage15.0 A
StandardFEDSPEC
Indoor/OutdoorIndoor
Wall Plate IncludedNo
StandardCSA C22.2 No. 42
Number of PolesDouble Pole
Application SectorCommercial
NEMA Configuration Code5-15R
Wire Connection TypeScrew Terminals
Special FeaturesIG symbol and Isolated Ground markings for easy identification and circuit delineation. Plastic barrier isolates grounding terminal from mounting strap and metal boxes. Impact-resistant nylon face. One-piece heat-treated triple-wipe brass power contacts. Easily accessible break-off line contact connecting tab for split circuit wiring. Corrosion-resistant, zinc-plated steel strap is locked in. Internal screw-pressure-plate back wire and side wire line terminals accept #14 – #10 AWG copper or copper-clad conductors. High strength thermoplastic back body. Back wire holes allow entry of conductor insulation partially into body but not into wiring compartment. Auto-ground clip assures positive ground. Compact design for easy installation. Tri-drive terminal and mounting screws.
Environmental ConditionsFlammability: UL94 V2
