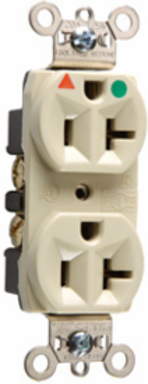

Pass & Seymour IG8300LA 20A 125V Heavy Duty Hospital-Grade Isolated Ground Duplex Receptacle, 0.922 Inch Depth, 2.635 Inch Height, Light Almond
Pass & Seymour IG8300LA 20A 125V Heavy Duty Hospital-Grade Isolated Ground Duplex Receptacle, 0.922 Inch Depth, 2.635 Inch Height, Light Almond
- MPN: IG8300LA
- UPC: 785007106701
- PPN: P-S-IG8300LA
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$76.51/ EA
Description
Isolated Ground Heavy-Duty Hospital Grade Duplex Receptacle Back and Side Wire 20A 125V
Features
- IG symbol and Isolated Ground markings for easy identification and circuit delineation.
- High-impact resistant nylon face resists impacts and scrapes.
- Corrosion-resistant plated steel strap.
- Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
- Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Specifications
Specifications
- Depth
- 0.922 in
- Height
- 2.635 in
- Product Line
- Pass & Seymour
- Country of Origin
- United States
- Voltage
- 125.0 V
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Standard
- CSA C22.2 No. 42
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- NEMA Configuration Code
- 5-20R
- Wire Connection Type
- Screw Terminals
- Special Features
- IG symbol and Isolated Ground markings for easy identification and circuit delineation. Plastic barrier isolates grounding terminal from mounting strap and metal boxes. Impact-resistant nylon face. One-piece heat-treated triple-wipe brass power contacts. Easily accessible break-off line contact connecting tab for split circuit wiring. Corrosion-resistant, zinc-plated steel strap is locked in. Internal screw-pressure-plate back wire and side wire line terminals accept #14 – #10 AWG copper or copper-clad conductors. High strength thermoplastic back body. Back wire holes allow entry of conductor insulation partially into body but not into wiring compartment. Auto-ground clip assures positive ground. Compact design for easy installation. Tri-drive terminal and mounting screws.
- Environmental Conditions
- Flammability: UL94 V2
ColorLight Almond
Width1.322 in
StandardUL498
Amperage20.0 A
Number of Wires3.0
Wire Size14 - 10 AWG
Number of Receptacles2.0
Outlet TypeHospital Grade
Outlet TypeIsolated Ground
Application SectorHealthcare
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
Dielectric StrengthWithstands 2000V minimum
FeaturesSingle Piece Plated Steel Mounting Strap
