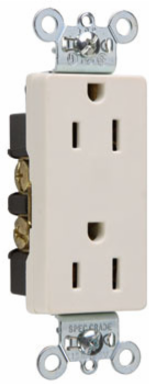

Pass & Seymour 26252LA 15A 125V Heavy Duty Decorator Duplex Receptacle, 0.78 Inch Depth, Light Almond
- MPN: 26252LA
- UPC: 785007784848
- PPN: P-S-26252LA
CAD
$18.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15A 125V Heavy Duty Decorator Duplex Receptacle, 0.78 Inch Depth, Light Almond
Features
- Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
- One-piece, brass, triple-wipe power contacts for lasting retention.
- Heavy-duty compact design for easier installation and long lasting performance.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face.
- Terminal compartments isolated from each other for positive conductor containment.
- All devices fit standard #26 opening wall plate.
- Tri-drive terminal and mounting screws.
- Auto-ground clip assures positive ground.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Height
- 2.635 in
- Width
- 1.322 in
- Country of Origin
- Mexico
- Voltage
- 125.0 V
- Standard
- cUL CSA
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- NEMA Configuration Code
- 5-15R
- Wire Connection Type
- Screw Terminals
- Dielectric Strength
- Withstands 2000V minimum
- Features
- Single Piece Plated Steel Mounting Strap
ColorLight Almond
Product LinePass & Seymour
StandardUL498
Amperage15.0 A
StandardFEDSPEC
Number of Wires3.0
Wire Size14 - 10 AWG
FeaturesDecorator Style
Outlet TypeStraight Blade
Application SectorCommercial
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
Environmental ConditionsFlammability: UL94 V2
Special FeaturesCorrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body. One-piece, brass, triple-wipe power contacts for lasting retention. Heavy-duty compact design for easier installation and long lasting performance. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face. Terminal compartments isolated from each other for positive conductor containment. Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire. All devices fit standard #26 opening wall plate. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.
