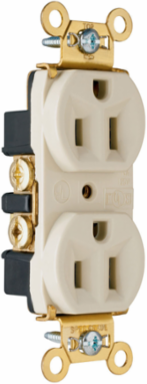

Pass & Seymour PS5262LA Heavy Duty 15A 125V Duplex Receptacle, Back/Side Wire, 2.635 Inch Height, Light Almond
- MPN: PS5262LA
- UPC: 785007859911
- PPN: P-S-PS5262LA
CAD
$32.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy Duty 15A 125V Duplex Receptacle, Back/Side Wire, 2.635 Inch Height, Light Almond
Features
- Heavy-duty, brass strap for added strength and ground conductivity.
- Strap tabs wrap around face to prevent strap from separating from face and back body.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- High strength nylon face.
- Internal screw-pressure-plate back and side wired to accept #14 and #10 AWG stranded or solid copper or copper-clad conductors.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Height
- 2.635 in
- Product Line
- Pass & Seymour
- Amperage
- 15.0 A
- Standard
- FEDSPEC
- Standard
- cULus UL498
- Wire Size
- 14 - 10 AWG
- Number of Receptacles
- 2.0
- Outlet Type
- Straight Blade
- Application Sector
- Commercial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Environmental Conditions
- Flammability: UL94 V2
- Special Features
- Heavy-duty, brass strap for added strength and ground conductivity. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Strap tabs wrap around face to prevent strap from separating from face and back body. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. High strength nylon face. Internal screw-pressure-plate back and side wired to accept #14 – #10 AWG stranded or solid copper or copper-clad conductors. Eight back wire holes. Auto-ground clip assures positive ground.
ColorLight Almond
Width1.322 in
Country of OriginUnited States
Voltage125.0 V
Number of Wires3.0
Indoor/OutdoorIndoor
Wall Plate IncludedNo
StandardCSA C22.2 No. 42
Number of PolesDouble Pole
NEMA Configuration Code5-15R
Wire Connection TypeScrew Terminals
Dielectric StrengthWithstands 2000V minimum
FeaturesSingle Piece Plated Steel Mounting Strap
