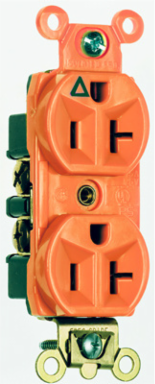

Pass & Seymour IG8300 20A 125V Hospital-Grade Isolated Ground Duplex Receptacle, Orange
- MPN: IG8300
- UPC: 785007830347
- PPN: P-S-IG8300
CAD
$80.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 125V Hospital-Grade Isolated Ground Duplex Receptacle, Orange
Features
- IG symbol and Isolated Ground markings for easy identification and circuit delineation.
- High-impact resistant nylon face resists impacts and scrapes.
- Corrosion-resistant plated steel strap.
- Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
- Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.922 in
- Height
- 2.635 in
- Width
- 1.322 in
- Country of Origin
- Mexico
- Amperage
- 20.0 A
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Number of Receptacles
- 2.0
- Outlet Type
- Hospital Grade
- Outlet Type
- Isolated Ground
- Application Sector
- Healthcare
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Features
- Single Piece Plated Steel Mounting Strap
ColorOrange
FinishMatte
Product LinePass & Seymour
StandardUL498
Voltage125.0 V
Indoor/OutdoorIndoor
Wall Plate IncludedNo
StandardCSA C22.2 No. 42
Number of PolesDouble Pole
Application SectorCommercial
NEMA Configuration Code5-20R
Wire Connection TypeScrew Terminals
Dielectric StrengthWithstands 2000V minimum
