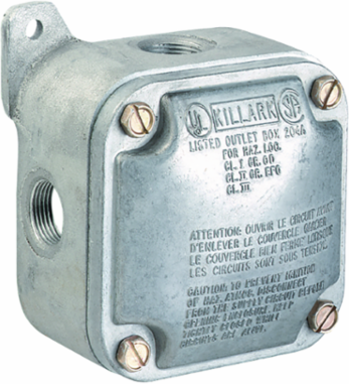

Killark JALX-10 Aluminum Outlet Body with Blank Cover, 1/2 Inch Hub Size, 7.5 x 6 x 4 Inch Dimensions
- MPN: JALX-10
- UPC: 783936365169
- PPN: HBL-JALX-10
- UNSPSC: 39121314
CAD
$359.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
JALX Series - Aluminum Outlet Body With Cover - With Blank Cover - Box Hub Size 1/2 Inch - Cover Hub Size 1/2 Inch
Features
- Option of blank or hub covers
- Cast mounting lugs
- Large wiring area
- Furnished with internal ground screw
- Hub covers include set screws for locking to lighting fixture stems
- Four drilled and tapped conduit openings in an “x” configuration (three, close-up plugs included to allow five variations from one body)
- Blank cover. Cast mounting lugs. Large wiring area. Furnished with internal ground screw. Four drilled and tapped conduit openings in an "X" configuration (three close-up plugs included to allow five variations from one body).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Height
- 4 in
- Application
- To provide access to conductors for pulling, splicing, and maintenance. May be used as a fixture hanger.
- Length
- 7.5 in
- Special Features
- Blank cover. Cast mounting lugs. Large wiring area. Furnished with internal ground screw. Four drilled and tapped conduit openings in an "X" configuration (three close-up plugs included to allow five variations from one body).
- Width
- 6 in
- Finish Type
- Natural
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 3.16
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936365169
- NAICS Code
- 3359326103
Dimensions7.5 in x 6 in x 4 in
Hub Size1/2"
ColorGray
Size7.5 in x 6 in x 4 in
TypeOutlet Body With Cover
Cover TypeBlank
ARRA CompliantContact Manufacturer
Description - Invoice1/2" AL JAL X TYPE W/1/2" BLANK COVER
Harmonization Code7616995190
Lead Time30 wk
Order Multiple1 EA
Sub Class CodeD30D237
Hub PatternX
SeriesJL/JAL Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
