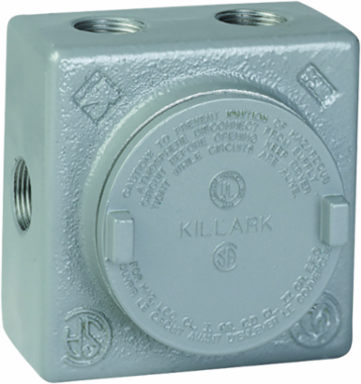

Killark GRSS-1 1/2 Inch Aluminum Outlet Body, 7 Internal Hubs, 2.63 lb, 7.625 in x 6 in x 4.25 in
- MPN: GRSS-1
- UPC: 783936230122
- PPN: HBL-GRSS-1
- UNSPSC: 39121314
CAD
$154.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1/2" Aluminum GRSS Outlet Body, 7 Internal Hub Config
Features
- Internal hubs
- Blank cover included (Cat. No. GRRBC)
- Compact design and multiple hub configurations
- Furnished with internal ground screw
- Cast-in brackets on cover for use with breaker-bar tools
- Finished with 7 internal hubs
- Internal hubs. Blank cover included (GRRBC). Compact design. Furnished with internal ground screw. Cast-in brackets on cover for use with breaker-bar tools.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Canada
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 1/2"
- Color
- Gray
- Size
- 7.625 in x 6 in x 4.25 in
- Type
- Outlet Body With Cover
- Weight
- 2.63 lb.
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- GR Outlet Bodies Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions7.625 in x 6 in x 4.25 in
Height4.25 in
ApplicationConduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
Length7.625 in
Special FeaturesInternal hubs. Blank cover included (GRRBC). Compact design. Furnished with internal ground screw. Cast-in brackets on cover for use with breaker-bar tools.
Width6 in
Cover TypeBlank
ARRA CompliantContact Manufacturer
Description - Invoice1/2" GRSS DIMENSIONS
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging2.63
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936230122
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
