Jonard Tools R-30-TRI Jonard Tools R-30-TRI Wire 30 Awg, Red, White, Blue 50 Ft

  • MPN: R-30-TRI
  • UPC: 811490012561
  • PPN: JTL-R-30-TRI

CAD

$52.63

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Typically used where flexibility, strength, and low weight is required, Kynar® wire is ideally suited in wire wrap, power supply, medical, and aerospace applications. It is also commonly used for circuit board prototyping because of its lighter weight and smaller overall diameter. Additionally, Kynar insulation provides excellent mechanical properties over a large temperature range and is resistant to an extensive range of chemicals including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic & aromatic hydrocarbons. These properties make Kynar® wire an excellent choice when working in even the harshest environmental applications. This wire also features the following:

Features

  • OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility
  • Kynar® insulation provides high temperature resistance (up to 105°C) and excellent abrasion resistance
  • Meets or exceeds UL 1423 standards

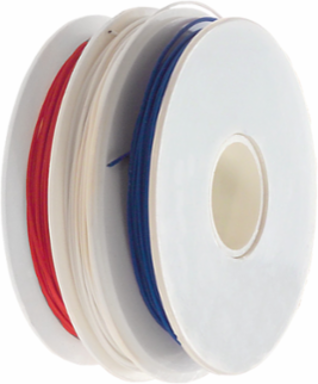

  • This product comes with 3 rolls of wire, 50 feet each: red, white, blue

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Color
Red, White, Blue
Wire Gauge
30 AWG (0.25 mm)
Height
4.5 Inch
Weight
0.136 Lbs.
Material
Silver Plated Copper Conductor
Voltage
Not Rated
Product Main Color
Red, White, Blue
Length0.85 Inch
Width5.25 Inch
Insulation TypeKynar®
Insulation Thickness0.005" (0.127 mm)
Overall Diameter0.020" (0.50 mm)
StandardsUL 1423
Product MaterialSilver Plated Copper Conductor
