Jonard Tools R30-5100 Jonard Tools R30-5100 30 AWG Kynar® Wire Dispenser with 500 ft Wire, 5 Colors

  • MPN: R30-5100
  • UPC: 810053350355
  • PPN: JTL-R30-5100

CAD

$130.45

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Typically used where flexibility, strength, and low weight are required, Kynar® wire is ideally suited in wire wrap, power supply, medical, and aerospace applications. It is also commonly used for circuit board prototyping because of its lighter weight and smaller overall diameter. Additionally, Kynar insulation provides excellent mechanical properties over a large temperature range and is resistant to an extensive range of chemicals including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic & aromatic hydrocarbons. These properties make Kynar® wire an excellent choice when working in even the harshest environmental applications. This wire also features the following:

Features

  • OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility
  • Kynar® insulation provides high-temperature resistance (up to 105°C) and excellent abrasion resistance
  • Meets or exceeds UL 1423 standards

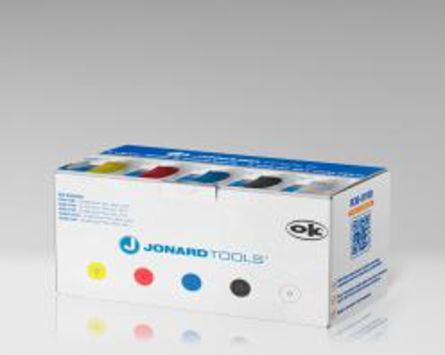

  • Included Wire Dispenser Box makes organizing and storing your wires a breeze

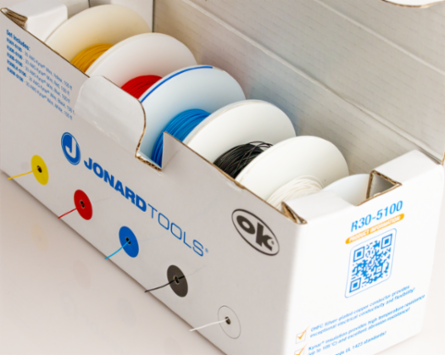

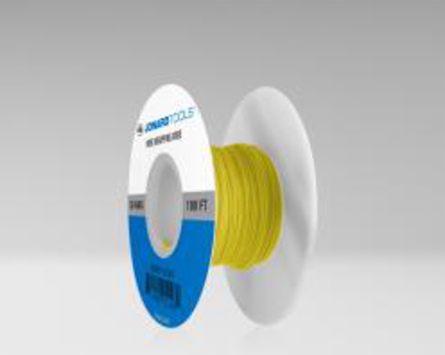

  • This kit includes a dispenser box and five color spools of 30 AWG wire, each 100 feet long

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Color
Black, Blue, Red, Yellow, White
Height
3.15 Inch
Insulation Type
Kynar®
Insulation Thickness
0.005" (0.127 mm)
Material
Silver Plated Copper Conductor
Voltage
Not Rated
Product Material
Silver Plated Copper Conductor
Length7.75 Inch
Width2.95 Inch
Wire Gauge30 AWG (0.25 mm)
Weight0.622 Lbs.
Overall Diameter0.020" (0.50 mm)
StandardsUL 1423
Length/Reel100 ft. (30.4 meters)
Product Main ColorBlack, Blue, Red, Yellow, White
