Jonard Tools WD-30-TRI Jonard Tools WD-30-TRI Blue, White, & Red Wire And Dispenser
- MPN: WD-30-TRI
- UPC: 811490012516
- PPN: JTL-WD-30-TRI
CAD
$79.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

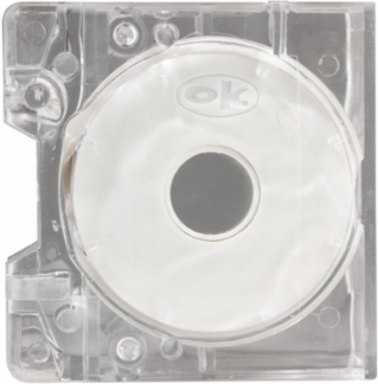

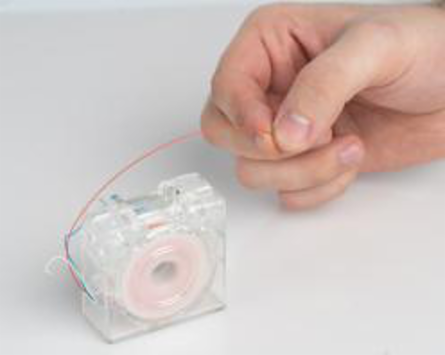

The Kynar® Wire Dispensers are used with insulated Kynar® wire for wire wrapping applications. This tri-color wire dispenser comes with 3 rolls of 50 ft (15.2 m) 30 AWG (0.25 mm) Kynar® wire wrapping wire, 1 of each insulation color: red, white, and blue. The wire dispenser features the following:
Features

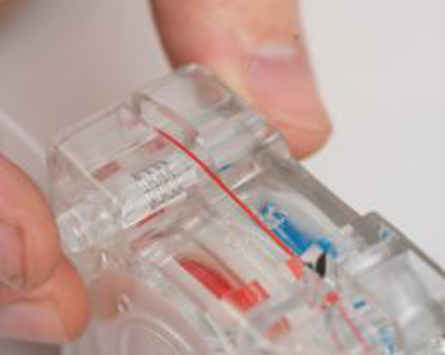

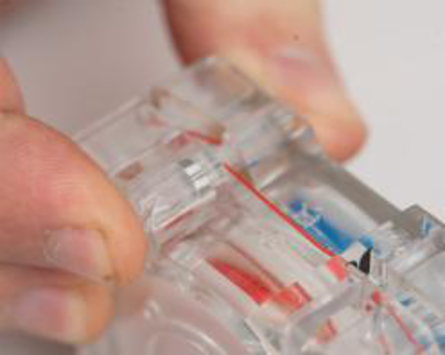

- Built-in plunger to cut the wire to any desired length

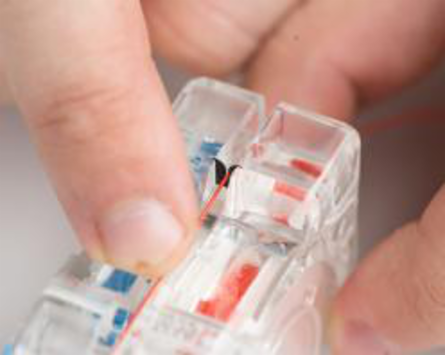

- Built-in wire stripper that strips 1" (25.4 mm) of insulation
- Refillable so you can load more wire when needed
- RoHS compliant and meets or exceeds UL 1423 standards
- Includes (3) wire rolls, 1 of each insulation color: red, white, and blue
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Length | 1.4 Inch |
| Width | 5.25 Inch |
| Wire Gauge | 30 AWG (0.25 mm) |
| Strip Length | 1" (25.4 mm) |
| Conductor Material | Silver Plated Copper |
| Product Material | Silver Plated Copper |
| Insulation Type | Kynar® |
|---|---|
| Insulation Color | Red, White, Blue |
| Height | 4.5 Inch |
| Weight | 0.227 Lbs. |
| Wire Length | 50 ft (15.2 m) |
| Standards | UL 1423 |
| Product Main Color | Red, White, Blue |
