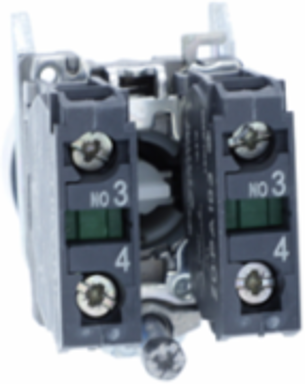

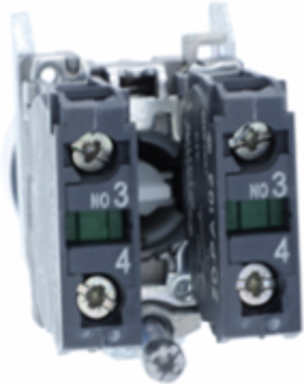

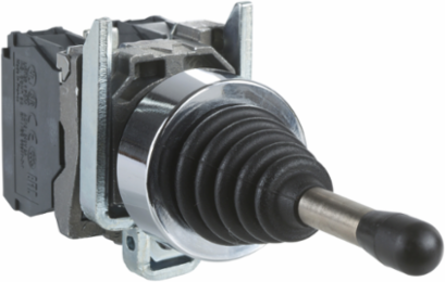

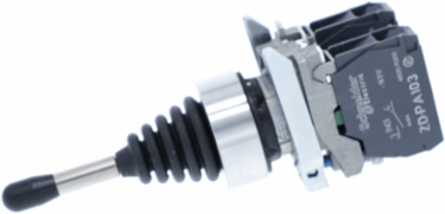

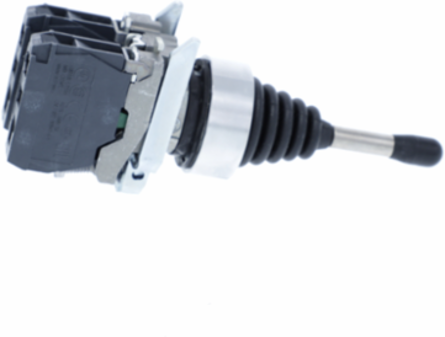

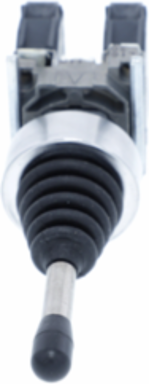

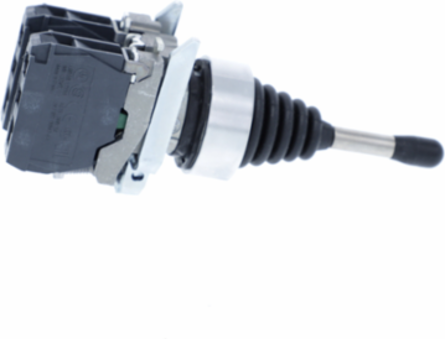

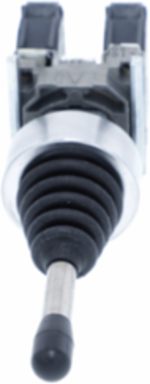

Schneider Electric XD4PA22 Harmony XB4 Joystick Controller 22mm Spring Return 1NO IP66
- MPN: XD4PA22
- PPN: SCH-XD4PA22
- UNSPSC: 39122227
CAD
$266.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony XB4, joystick controller operates with 4-direction return-to-center mechanism. It has 4 x NO (1 per direction) contacts and a chromium-plated metal bezel. This joystick provides a versatile and intuitive interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement.
Features
- This heavy-duty joystick features a 2-direction lateral movement with a stay-put mechanical return, ensuring precise control without accidental axis drifting. It provides one normally open (1 NO) contact per direction, giving industrial automation technicians a reliable, tactile interface for crane, hoist, or conveyor operations.
- Built to the industry-standard Harmony XB4 22mm mounting diameter, this metal bezel joystick integrates seamlessly into your current control stations and pulpits. It eliminates the need for custom panel retrofitting or widening existing cutouts, making it a drop-in replacement for standard pushbuttons or selector switches.
- This high-performance controller is rated for AC-15 and DC-13 utilization categories, supporting up to 600V AC/DC and conventional enclosed thermal currents of 10A. The screw-clamp terminal connections ensure high vibration resistance, preventing loose wiring faults in heavy machinery applications.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
| Weight | 113 g |
|---|
Physical Attributes

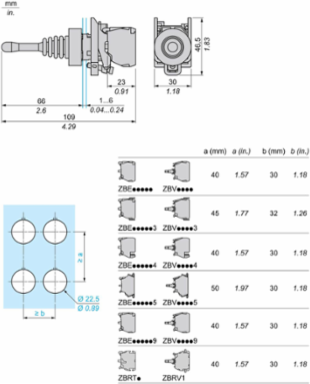

| Cad Overall Depth | 109 mm |
|---|---|
| Cad Overall Width | 30 mm |
| Cad Overall Height | 46.5 mm |
|---|
Complementary Attributes
| Ie Rated Operational Current | 0.1 A 250 V, DC-13, R300 IEC 60947-5-10.22 A 125 V, DC-13, R300 IEC 60947-5-1 |
|---|---|
| Uimp Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Ui Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Bezel Material | chromium plated metal, chromium plated metal |
| Electrical Reliability | λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4 |
| Operator Pos Information | 3 positions |
| Carbon Footprint Of The Distribution Phase A4 | 0.03946, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.018634, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 0 kg CO2 eq., 0.011987 |
| Local Publishable Date | 2026-05-08 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2302014EN |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contact Operation | slow-break |
| Contacts Type And Composition | 1 NO |
| Device Short Name | XD4 |
| Fixing Collar Material | zamak |
| Mounting Diameter | 22.5 mm |
| Operator Direction Information | 2 directions |
| Positive Opening | without |
| Product Or Component Type | joystick controller |
| Protective Treatment | TH |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 1 kg CO2 eq. |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Connections Terminals | screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1 |
| Database Version | 2022-01 |
| Nbr. Of Units In Pkg. | 1 |
| Ith Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| Product Repair Index Dam Document Id | XB4BS8442-ENVREPAIR-A-EN |
| Packaging Weight In G | 15.9 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Shape Of Screw Head | cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Certificate Agency | CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.14104 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.7 kg CO2 eq., 0.74287 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Product Repair Index Dam Doc | XB4BS8442-ENVREPAIR-A-EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | XD4 |
| Contacts Material | silver alloy (Ag/Ni) |
| Contacts Usage | standard |
| Electrical Shock Protection Class | class I conforming to IEC 60536 |
| Mechanical Durability | 1000000 cycles |
| Notch Per Direction | 1-1 |
| Operator Position Information | 3 positions |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Repair Index | A |
| Range Of Product | Harmony XDA |
| Returnability | Yes |
| Shape Of Signaling Unit Head | round |
| Software Version | v5.9.4 |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Type Of Operator | spring return to 0 position, long operating shaft 54 mm |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Type Of Operator 21 Type Of Operator | spring return |
| Data Source | referent product |
| Customs Code | 8536509065 |
| Short Circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Warranty In Months | 18 |
| Functional Unit Description | This joystick provides a versatile and intuitive interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections with power consumption of 0.004W at active phase 7.2% in a 10-year lifespan and adheres to IEC 60947-5-5 and 60947-5-1 standards. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 42 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Nema Degree Of Protection | UL type 4X/13, NEMA 13, NEMA 4X |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2302014EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 0.953991 |
| Environmental Disclosure | ENVPEP2302014EN |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2302014EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | joystick controller |
|---|
| Range Of Product | Harmony XDA |
|---|
ETIM
| ETIM 8 | EC000632 |
|---|---|
| ETIM 10 | EC000632 |
| ETIM 9 | EC000632 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
