Schneider Electric ZB4BA9 Harmony XB4 Flush Push Button Head 22mm, Spring Return, IP66, 6 Color Caps

MPN: ZB4BA9
PPN: SCH-ZB4BA9

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$13.94

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Features

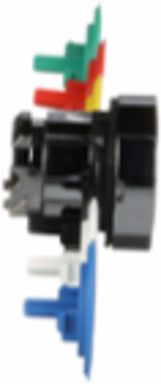

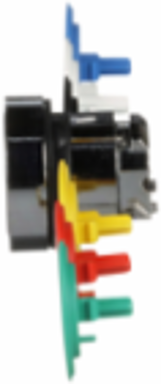

This unique ZB4BA9 configuration includes a standard 22mm Harmony XB4 metal head bundled with 6 interchangeable color caps (Black, Red, Green, Blue, Yellow, and White). This allows facility managers and OEMs to standardize on a single part number and decide the final function such as "Start," "Stop," or "Reset" at the moment of installation.
With the included cap set, you can easily comply with IEC 60204-1 and NFPA 79 color codes. Use the Green cap for "Start," Red for "Stop" (non-emergency), and Blue for "Reset." This flexibility eliminates the need to stock six different colored pushbutton heads, significantly reducing your inventory overhead and storage space.
Featuring a Chromium-plated metal bezel, the ZB4BA9 is part of Schneider's rugged Harmony XB4 line. This metal construction offers superior mechanical strength and chemical resistance over plastic alternatives, making it the preferred choice for heavy manufacturing, automotive assembly lines, and oil and gas facilities
This operator head is engineered for extreme environments, carrying IP66, IP67, IP69, and IP69K ratings. It is fully NEMA 4X and 13 rated, ensuring it remains watertight and functional even when subjected to high-pressure, high-temperature cleaning or exposure to industrial oils and dust.

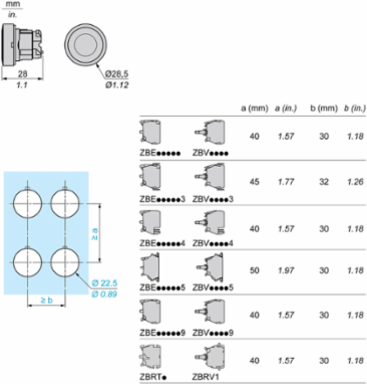

The head is designed for a standard 22.5mm hole and utilizes the modular ZB4 mounting system. The color caps snap securely onto the flush head, and the entire assembly "clicks" into a ZB4BZ009 mounting collar. This modularity allows for rapid field changes or repairs without disturbing the wiring on the rear-mounted contact blocks.
