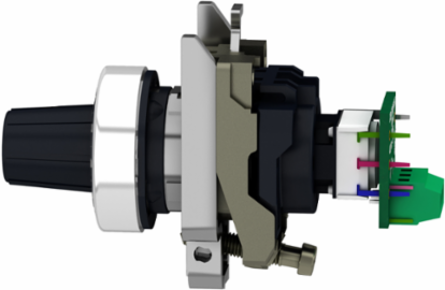

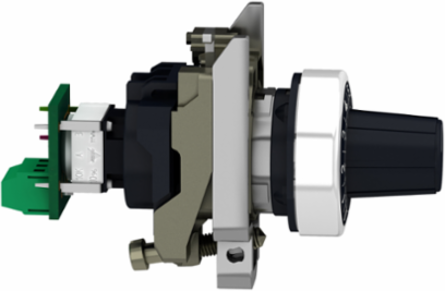

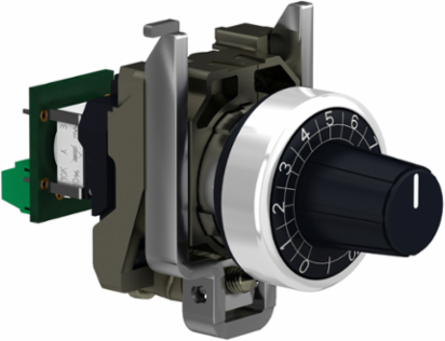

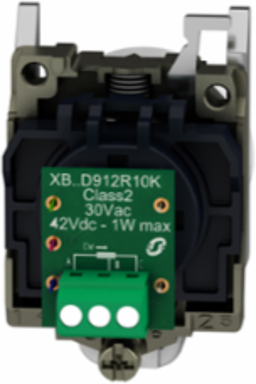

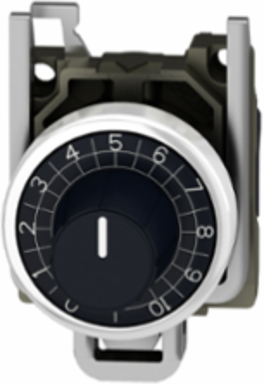

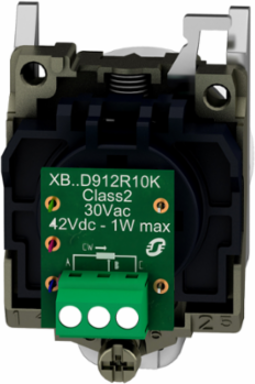

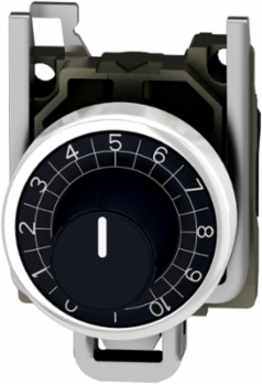

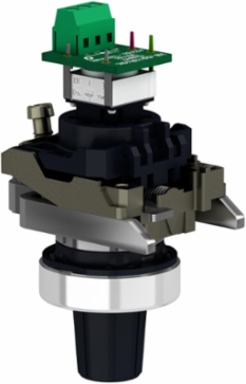

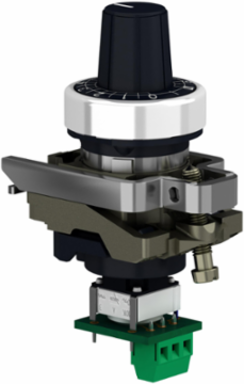

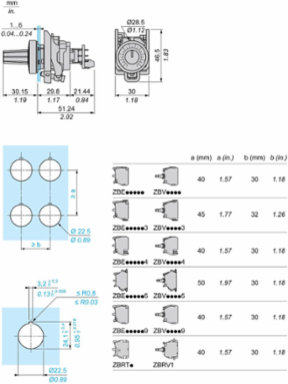

Schneider Electric XB4BD912R4K7 Harmony XB4 Potentiometer 22mm 4.7k IP66/IP69K
- MPN: XB4BD912R4K7
- PPN: SCH-XB4BD912R4K7
CAD
$42.58
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB4 potentiometer has a resistance of 4.7kΩ. It has a metal bezel. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.
Features
- The Schneider Electric XB4BD912R4K7 is a complete 22mm potentiometer from the Harmony XB4 metal range. It is designed to provide a manual interface for controlling analog variables most commonly used in Canada for adjusting the speed of a motor on a Variable Frequency Drive (VFD) or tuning the temperature setpoint on an industrial oven.
- The "4K7" in the part number indicates a resistance of 4,700 Ohms ($4.7 ). This specific value is the industry standard for the analog input terminals of most major VFD brands. It features a linear taper, meaning the resistance changes at a constant rate as you turn the knob, providing smooth and predictable control over the entire 270 of rotation.
- As an XB4 series component, it features a rugged, chromium-plated metal bezel. This makes it significantly more durable than plastic alternatives. It is engineered to survive the high-impact environments of Canadian sawmills, automotive plants, and mines, where a plastic knob might be easily snapped or cracked.
- This potentiometer is exceptionally well-sealed. With an IP69K rating, it is designed to withstand high-pressure, high-temperature steam cleaning ($176^\circ\text{F}$ at $1,450\text{ psi}$). This is a mandatory requirement for Canadian food and beverage facilities that undergo daily sanitary washdowns.
- The internal resistive element is made of Cermet (a ceramic-metal composite), which offers better stability and heat dissipation than standard carbon elements. Rated for 1 Watt at 70 C, it can handle the continuous current of a control circuit without drifting in value, even in the warm interior of a dense electrical cabinet.
