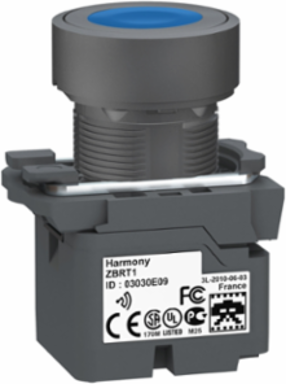

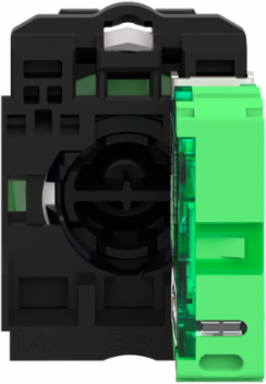

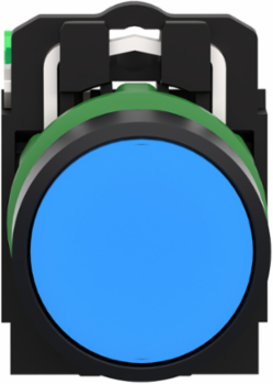

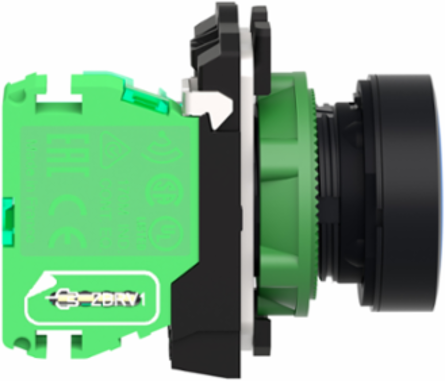

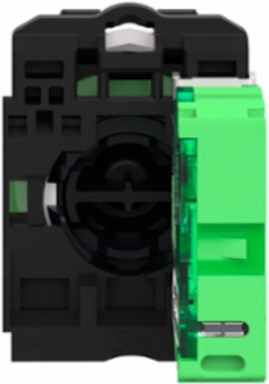

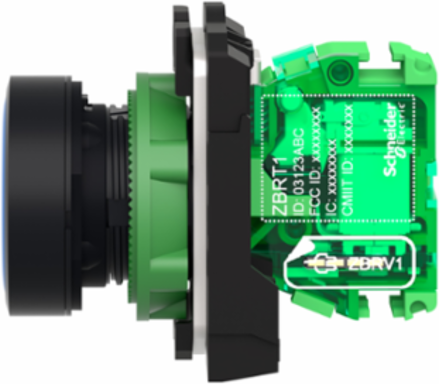

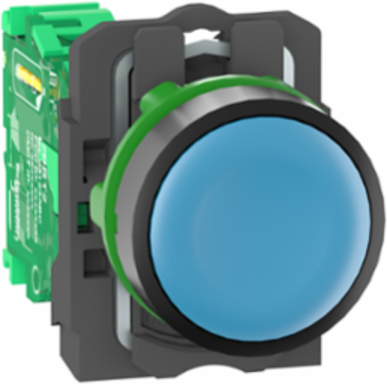

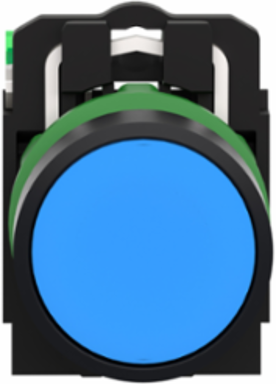

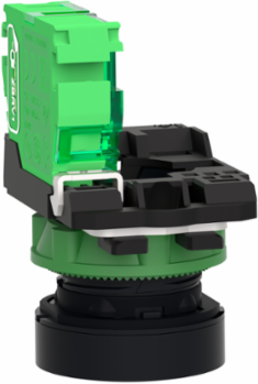

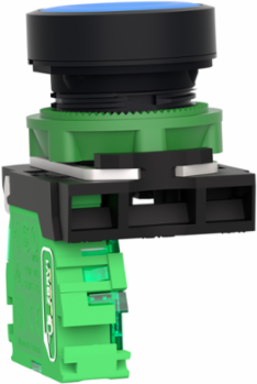

Schneider Electric ZB5RTA6 Harmony XB5R Wireless Transmitter, 22mm, IP65, Blue
- MPN: ZB5RTA6
- PPN: SCH-ZB5RTA6
CAD
$126.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This button head provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP30, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly High performance International standards & certifications ( Marine certification, IP65, IP30, Type 4X)
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Communications & Management Attributes
- Communication Port Protocol
- Zigbee green power 2.4 GHz IEEE 802.15.4

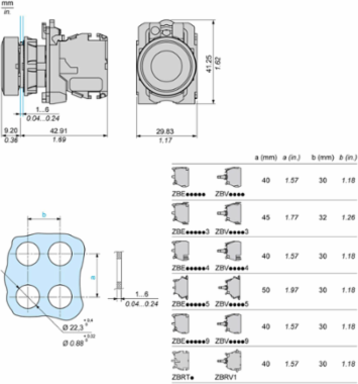

Physical Attributes
- Cad Overall Depth
- 43 mm
- Cad Overall Width
- 30 mm
Cad Overall Height41.5 mm
Embedding Depth42 mm
Complementary Attributes
- Maximum Sensing Distance
- 100 m in free field, 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure, 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Important Information Attributes
- Customizable
- 0, no
- Radio Agreement
- ANATEL, ARIB T66, FCC, ICASA, RSS
- Station Name
- XALD 1...5 cut-outs, XALK 2...5 cut-outs
- Operator Profile 1 Cap Operator Or Lens Color
- blue
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0188567029, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0160326789, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Future Imap
- 91.73
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2506038EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Antenna Type
- omnidirectional
- Device Short Name
- XB5R
- Emission Power
- 3 mW
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m
- Level Or Class
- 5M00G7W
- Marking
- unmarked
- Mechanical Durability
- 1000000 cycles
- Modulation Technique
- O-QPSK
- Number Of Channels
- 16
- Operating Travel
- 4.3 mm total travel)
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Repair Index
- A
- Response Time
- < 2 ms< 2 ms
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- Yes
- Transmission Frequency
- 2405 MHz
- X C Marking
- unmarked
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This pack comprises one wireless and batteryless pushbutton assembled on fixing collar and one receiver. Pushbutton and receiver are factory-paired. It is uses a 24V to 240V AC/DC input. The wireless and batteryless pushbutton reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. The product uses 0.72W of power when it is active and 0.6W of power when it is in standby mode for 99.86% of the time over the period of 10 years.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
Shock Resistance25 gn 6 ms) 6000 shocks IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance+/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-65 gn (f= 11-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
Certificate AgencyC-tick, CSA, GOST, BT 2006/95/EC, UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.0805124016
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.3875106782
Local Data StatusPublishable
Return IndicatorY
Future Msrp118.76
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Antenna Gain0 dBi
Bezel Materialdark grey plastic
Electrical Composition CodePW1
Fixing Collar Materialplastic
Group Of Productflush push wireless
Main Groupwireless push-button
Max Power Consumption In W1 mW
Mechanical Robustnessfree fall resistance 1000 mm IEC 60068-2-32
Mounting Diameter22 mm
Operating Force10 N C/O changing electrical state
Operator Profileblue flush
Product Or Component Typewireless and batteryless transmitter
Range Of ProductHarmony XB5
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint2 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2506038EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Cap/Operator Or Lens Colourblue
Package Weight(Lbs)38.000 g
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Directives
- 2004/108/EC - electromagnetic compatibility, 1999/5/EC - R&TTE directive
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1.5029124616
- Environmental Disclosure
- ENVPEP2506038EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2506038EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Ip Degree Of ProtectionIP66 IEC 60529 front face), IP67 IEC 60529 front face), IP69 IEC 60529 front face), IP69K IEC 60529 front face)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2506038EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % -40-70 °C without condensation
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- wireless and batteryless transmitter
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
