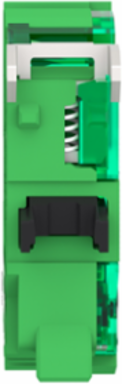

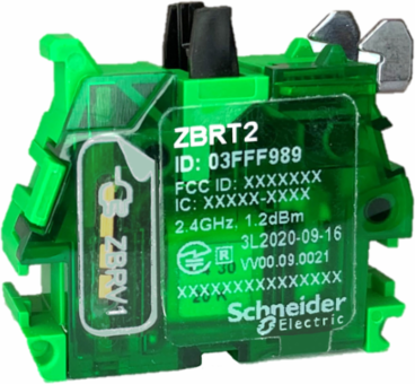

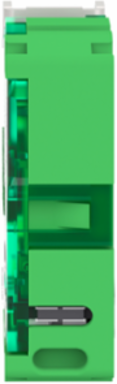

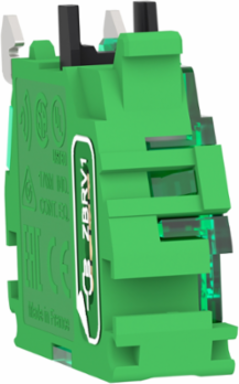

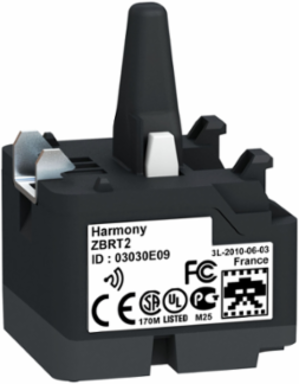

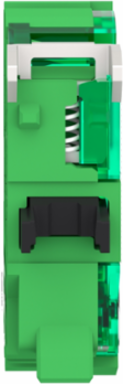

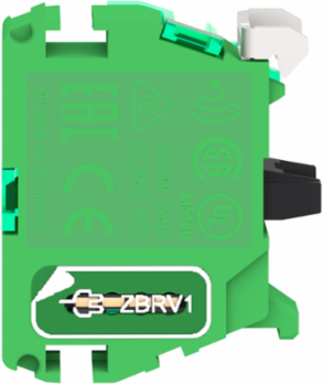

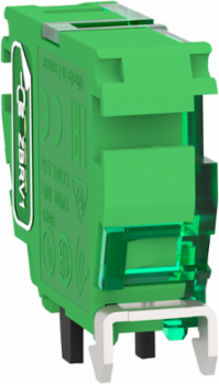

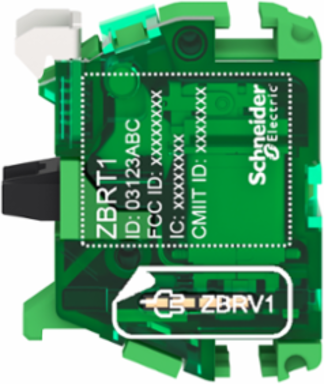

Schneider Electric ZBRT2 Harmony XB5R Wireless Push Button Transmitter, 22 mm, 25g, Zigbee 2.4 GHz
- MPN: ZBRT2
- PPN: SCH-ZBRT2
CAD
$92.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

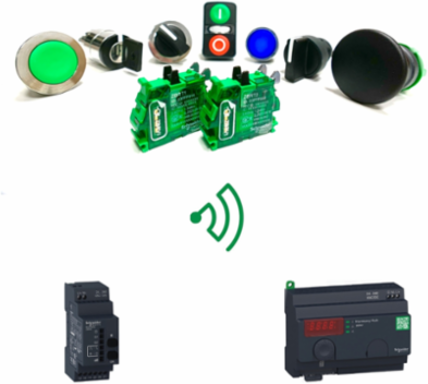

This transmitter is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a transmitter for wireless and batteryless pushbutton. It provides 1 radio frame sent at the push of the button and 1 radio frame sent at the release of the button. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 25g. This transmitter is only compatible with receiver ZBRRp version greater than or equal to 2.0, relay antenna ZBRA1 version greater than or equal to 2.0, and access point ZBRNp version greater than 1.2.
Features
- Powered by innovative self-regenerating energy harvesting technology, the ZBRT2 converts the mechanical force of a finger press into electrical energy to transmit a 2,404 MHz ZigBee radio signal. This completely eliminates the recurring labor costs of replacing batteries, removes the need to run control cables through long conduit paths, and minimizes downtime caused by worn or damaged field wiring.
- Boasting a robust line-of-sight transmission range of up to 300 meters (or approximately 25 meters when installed inside a standard metal enclosure with an external antenna), this transmitter provides highly reliable remote control capabilities over vast factory floors. The integrated omnidirectional antenna ensures consistent communication even around structural barriers, making it ideal for managing conveyor lines, overhead cranes, and remote pumping stations.
- Designed to clip directly into standard Schneider Electric Harmony XB4 metal and XB5 plastic 22mm pushbutton bodies, this compact transmitter integrates seamlessly into your existing operator interface layouts. This modular design allows facility maintenance technicians to instantly upgrade standard wired pushbuttons to cutting-edge wireless devices without modifying the existing panel cutouts or enclosure doors.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
Communications & Management Attributes
| Communication Port Protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
|---|
Physical Attributes

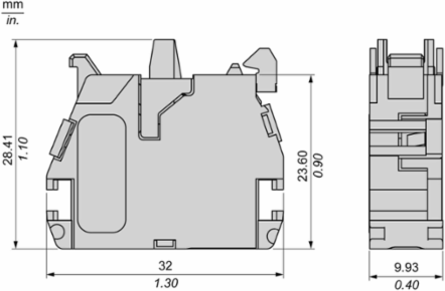

| Cad Overall Depth | 43 mm |
|---|---|
| Cad Overall Width | 30 mm |
| Cad Overall Height | 41.5 mm |
|---|---|
| Embedding Depth | 42 mm |
Complementary Attributes
| Maximum Sensing Distance | 100 m in free field25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Radio Agreement | ANATEL, ARIB T66, FCC, ICASA, RSS |
| Vibration Resistance | +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-65 gn (f= 11-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.005364384, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0009071744, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2009013EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Antenna Gain | 0 dBi |
| Bezel Material | plastic |
| Device Short Name | XB5R |
| Electromagnetic Compatibility | electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3 |
| Level Or Class | 5M00G7W |
| Mechanical Durability | 400000 cycles |
| Modulation Technique | O-QPSK |
| Number Of Channels | 16 |
| Operating Travel | 4.3 mm total travel) |
| Product Or Component Type | wireless and batteryless transmitter |
| Response Time | < 2 ms< 2 ms |
| Software Version | EIME v5.8.1 |
| Total Lifecycle Carbon Footprint | 0.3 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The ZBRT1 is a wireless switch block which can be mounted with an actuation head. When the head is actuated through the action of an operator the product will generate electricity in order to send a radio signal to a radio reciever for 10 years. |
| Energy Model - Manufacturing [A1-a3] | Energy model used: France |
| Energy Model - Use [B6] | Electricity Mix; AC; <lt/> 1kV; EU-27 |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | Yes |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Shock Resistance | 25 gn 6 ms) 6000 shocks IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Certificate Agency | CSA, CCC, UL, GOST, C-tick, BT 2006/95/EC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0169802347 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.3 kg CO2 eq., 0.3106602667 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Antenna Type | omnidirectional |
| Contact Operation | double action UP/DOWN push-buttons) |
| Electrical Composition Code | PW1 |
| Fixing Mode | fixing nut beneath head 2-2.4 N.m |
| Max Power Consumption In W | 1 mW |
| Mechanical Robustness | free fall resistance 1000 mm IEC 60068-2-32 |
| Mounting Diameter | 22 mm |
| Operating Force | 10 N C/O changing electrical state |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony XB5 |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Transmission Frequency | 2405 MHz |
| Pep Code | ENVPEP2009013EN |
| Pep Verification Date | 2020-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; AC; <lt/> 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; AC; <lt/> 1kV; EU-27 |
| Package Weight(Lbs) | 34.0 g |
| Take-back | No |
| Customs Code | 8517620090 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Directives | 2004/108/EC - electromagnetic compatibility, 1999/5/EC - R&TTE directive |
| Recycled Metal Content At Cr Level | 0 % |
| Silicon Free | Yes |
| Circularity Profile | ENVEOLI2009013EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2009013EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 0.3339120597 |
| Environmental Disclosure | ENVPEP2009013EN |
| Ip Degree Of Protection | IP30 IEC 60529 back face) |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 95-95 % -40-70 °C without condensation |
| Pep Verification Date | 2020-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Product Or Component Type | wireless and batteryless transmitter |
|---|
| Range Of Product | Harmony XB5 |
|---|
ETIM
| ETIM 8 | EC002024 |
|---|
| ETIM 9 | EC002024 |
|---|
