Intermatic

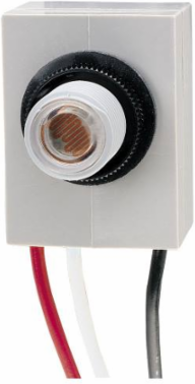

Intermatic K4027 Button Thermal Photocontrol, 347 V

Button Thermal Photocontrol, 347 V
  • MPN: K4027
  • UPC: 078275091672
  • PPN: INT-K4027

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$28.00/ EA

Description

These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-to-dawn ON/OFF control of outdoor lighting.

Features

  • Mechanical bimetal switch with Cadmium Sulfide photocell
  • Compact size fits into standard outlet box, post lamp, wall pack and other lighting fixtures
  • Delay feature prevents unwanted OFF switching
  • 3⁄8"-18 NPSM, ¾" long stem with locking nut and washer gasket
  • K4321C includes weatherproof wall plate and neoprene gasket

Specifications

Specifications

Photocontrol Style
Button
Input Voltages Display
347 VAC, 50/60 Hz
Incandescent Load Ratings
15 A, 347 VAC, 50/60 Hz
Activation On
1 to 5 fc
Wire Lead Length (in)
9
Operating Temperature Max (C)
70
Operating Temperature Min (C)
-40
Cover Color
Gray
Product Width (mm)
23.8
Warranty
2-year limited
Photocontrol Sensor LocationFront
Inductive8.3 A, 347 VAC, 50/60 Hz
Activation Off3 to 15 fc
Sensor Time Delay30 sec to 90 sec
Wire Lead Length (mm)228.6
Operating Temperature Max (F)158
Operating Temperature Min (F)-40
Product Height (mm)46
Product Depth (mm)20.6
