Intermatic EK4036S NIGHTFOX EK Series Premium Button Mount Electronic Photocontrol, 120-277 V

NIGHTFOX EK Series Premium Button Mount Electronic Photocontrol, 120-277 V - https://media.province-electric.com/1069/auto_mfr_template/medium/aeddc67f03d08bff3187800d1919fa32b37334c8-medium.png

NIGHTFOX EK Series Premium Button Mount Electronic Photocontrol, 120-277 V - https://media.province-electric.com/1069/auto_mfr_template/medium/88780b5297c5de7ff11bf12766d8269f4d7eb3a3-medium.png

NIGHTFOX EK Series Premium Button Mount Electronic Photocontrol, 120-277 V - https://media.province-electric.com/1069/auto_mfr_template/medium/5c677034ed52a5270ea9fa1e283a99cec84ad214-medium.png

NIGHTFOX EK Series Premium Button Mount Electronic Photocontrol, 120-277 V - https://media.province-electric.com/1069/auto_mfr_template/medium/b8ef64a2b198dae3752fc6f8dba7c4456df14300-medium.png

NIGHTFOX EK Series Premium Button Mount Electronic Photocontrol, 120-277 V

NIGHTFOX EK Series Premium Button Mount Electronic Photocontrol, 120-277 V

NIGHTFOX EK Series Premium Button Mount Electronic Photocontrol, 120-277 V

NIGHTFOX EK Series Premium Button Mount Electronic Photocontrol, 120-277 V

NIGHTFOX EK Series Premium Button Mount Electronic Photocontrol, 120-277 V

Intermatic EK4036S NIGHTFOX EK Series Premium Button Mount Electronic Photocontrol, 120-277 V

MPN: EK4036S
UPC: 078275146280
PPN: INT-EK4036S
UNSPSC: 39121524

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$33.93/ EA

Loading add to cart quantity...

Description

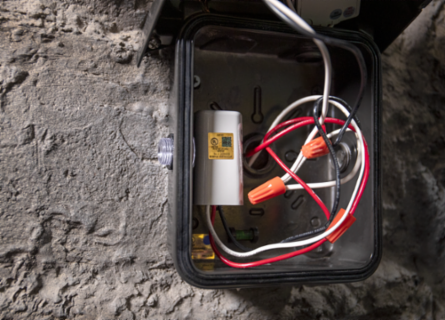

NIGHTFOX EK Series Electronic Photocontrols are designed for permanent installation within outdoor-rated electrical enclosures, in-wall junction boxes, or lighting fixtures. This premium solution is suitable for use with high-efficiency, long-life LED luminaires. The unit mounts internally and requires a minimum enclosure aperture of 5/8" in diameter. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.

Features

Non-drift silicon light sensor with IR filter
DC relay with zero-crossing circuitry for extended life
Conformal coated PCB
15-year design life
Exceeds 10,000 ON/OFF switching cycles
Fail ON mode
Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
255 J MOV surge protection element
Mounts internally to enclosure.
Features 3/8" - 18 NPSM thread for a minimum installation hole size of 5/8 inch diameter

Specifications

Specifications

Input Voltage Rating Range(s): 120-277 VAC, 50/60 Hz (Nominal Voltage)

Color: Gray

Marketing Description: NIGHTFOX EK Series Electronic Photocontrols are designed for permanent installation within outdoor-rated electrical enclosures, in-wall junction boxes, or lighting fixtures. This premium solution is suitable for use with high-efficiency, long-life LED luminaires. The unit mounts internally and requires a minimum enclosure aperture of 5/8" in diameter. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.

Width: 1.313 in

Country of Origin: Mexico

Warranty Period8-Year limited

ApplicationsOutdoor Lighting Control

Height2.25 in

Depth1.25 in
