Intermatic K4021MB Mini-Button Thermal Photocontrol, 120V

MPN: K4021MB
UPC: 078275159594
PPN: INT-K4021MB
UNSPSC: 39121524

$20.93

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

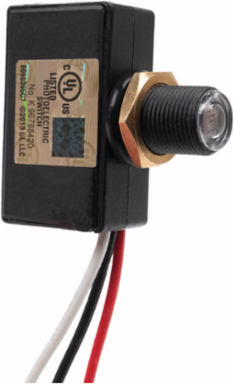

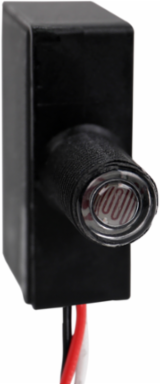

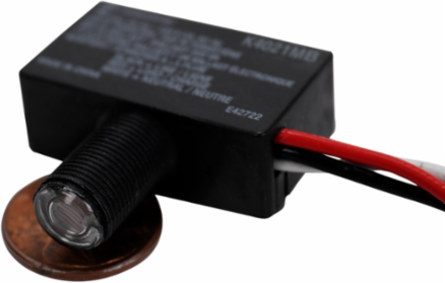

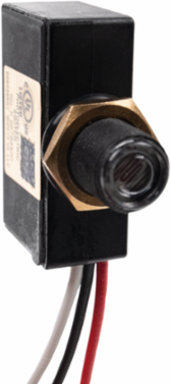

The mini-button photocontrol is a compact thermal-type photocontrol that fits inside small poles and enclosures. The photocontrol provides dusk-to-dawn lighting control. It is compatible with CFL, incandescent and LED bulbs. Its compact size makes it ideal for lamp posts and small light fixtures used in residential applications.

Features

Mechanical bimetal switch with cadmium sulfide photocell.
Super compact size fits into small diameter lamp post and small light fixtures.
Delay feature prevents unwanted OFF switching.

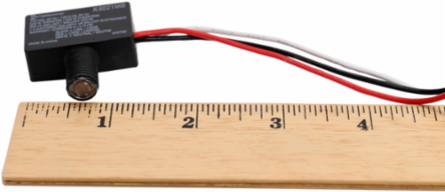

Fits through small 7/16” (11 mm) diameter hole, locking nut and washer gasket.
Wallplate not included.

Documentation & Downloads

Specifications

Key Specifications

Input Voltage Rating Range(s)	120 VAC, 60 Hz
Color	Black
Height	1.344 in
Depth	0.875 in

Warranty Period	2-Year limited
Marketing Description	The mini-button photocontrol is a compact thermal-type photocontrol that fits inside small poles and enclosures. The photocontrol provides dusk-to-dawn lighting control. It is compatible with CFL, incandescent and LED bulbs. Its compact size makes it ideal for lamp posts and small light fixtures used in residential applications.
Width	0.5 in
Country of Origin	China
