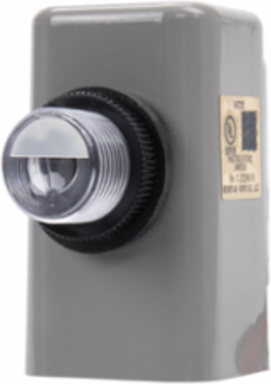

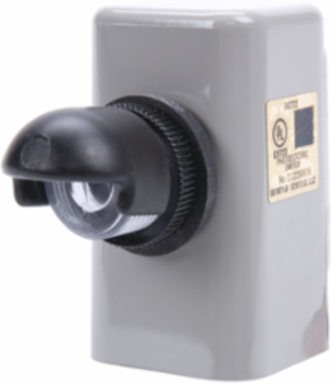

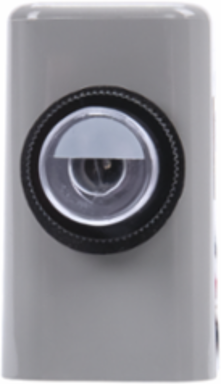

Intermatic EK4027S Electronic Photocontrol, 347 VAC, 5/8 Inch Hole
- MPN: EK4027S
- UPC: 078275152366
- PPN: INT-EK4027S
- UNSPSC: 39121524
CAD
$50.10
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
NIGHTFOX EK Series Electronic Photocontrols are designed for permanent installation within outdoor-rated electrical enclosures, in-wall junction boxes, or lighting fixtures. This premium solution is suitable for use with high-efficiency, long-life LED luminaires. The unit mounts internally and requires a minimum enclosure aperture of 5/8" in diameter. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.
Features
- Non-drift silicon light sensor with IR filter
- DC relay with zero-crossing circuitry for extended life
- Conformal coated PCB
- 15-year design life
- Exceeds 10,000 ON/OFF switching cycles
- Fail ON mode
- Ideal for single or multifixture HID and LED installations
- 220 J MOV surge protection element
- Mounts internally to enclosure
- Features 3/8" - 18 NPSM thread for a minimum installation hole size of 5/8 inch diameter
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage Rating Range(s)
- 347 VAC, 50/60 Hz
- Color
- Gray
- Marketing Description
- NIGHTFOX EK Series Electronic Photocontrols are designed for permanent installation within outdoor-rated electrical enclosures, in-wall junction boxes, or lighting fixtures. This premium solution is suitable for use with high-efficiency, long-life LED luminaires. The unit mounts internally and requires a minimum enclosure aperture of 5/8" in diameter. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.
- Width
- 1.313 in
- Country of Origin
- Mexico
Warranty Period8-Year limited
ApplicationsOutdoor Lighting Control
Height2.25 in
Depth1.25 in
