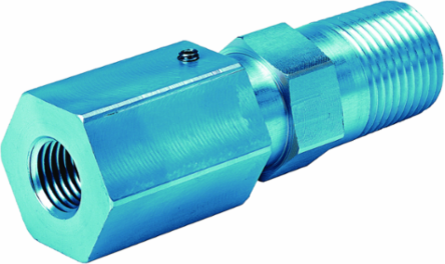

Killark KBM20FA25 Aluminum Flame Arrestor - M20 External Thread, 1/4 Inch NPT, 5 Inch x 1 Inch x 10 Inch
- MPN: KBM20FA25
- UPC: 783936071503
- PPN: HBL-KBM20FA25
- UNSPSC: 39121321
CAD
$656.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
KB Series - Aluminum Flame Arrestor - Male/Female - External Thread Size M20 - Internal Thread Size 1/4 Inch NPT
Features
- Suitable for Explosionproof and Dust-Ignitionproof environments.
- Copper-free aluminum.
- Light Blue Anodized Finish.
- The flame arrestor has a M20 external thread size and a 1/4" NPT internal thread size.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 5 in
- Color
- Blue
- Special Features
- The flame arrestor has a M20 external thread size and a 1/4" NPT internal thread size.
- Width
- 1 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- M20 / 1/4NPT FLAME ARRESTOR ALUM
- Harmonization Code
- 7616995190
- Lead Time
- 30 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 0.125
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936071503
- NAICS Code
- 3359326103
Dimensions5 in x 1 in x 10 in
Height10 in
ApplicationThe flame arrestor provides a means to connect gas analysis equipment and electro pneumatic devices' pipe or tubing system through the wall of an explosion-proof enclosure.
Size5 in x 1 in x 10 in
TypeFlame Arrestor
Nema Rating3, 4, 4X
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
SeriesKB Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
