Killark

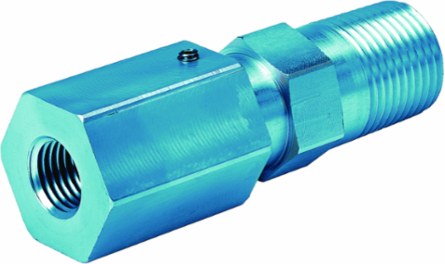

Killark KB1FAM16 Aluminum Flame Arrestor 1/2 Inch NPT Male, M16 Female, 5 In x 1 In x 10 In

Aluminum Flame Arrestor 1/2 Inch NPT Male, M16 Female, 5 In x 1 In x 10 In
  • MPN: KB1FAM16
  • UPC: 783936071497
  • PPN: HBL-KB1FAM16
  • UNSPSC: 39121314

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$604.92/ EA

Description

KB Series - Aluminum Flame Arrestor - Male/Female - External Thread Size1/2 Inch NPT - Internal Thread Size M16

Features

  • Suitable for Explosionproof and Dust-Ignitionproof environments.
  • Copper-free aluminum.
  • Light Blue Anodized Finish.
  • The flame arrestor has a 1/2" NPT external thread size and a M16 internal thread size.

Specifications

Specifications

Country of Origin
United States
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Application
The flame arrestor provides a means to connect gas analysis equipment and electro pneumatic devices' pipe or tubing system through the wall of an explosion-proof enclosure.
Length
5 in
Size
5 in x 1 in x 10 in
Type
Flame Arrestor
Nema Rating
3, 4, 4X
Class Code
D30
Freight Class Code
06316009
Image Actual Or Representative
R
MSDS Flag
No
Returnable Indicator
Yes
CSA File Number
LR11716
UL File Number
E10514
Series
KB Series
Carton - SCC-14 Next Lower Level Sub Pack
00783936071497
Dimensions5 in x 1 in x 10 in
Height10 in
ColorBlue
NEMA Rating3, 4, 4X
Special FeaturesThe flame arrestor has a 1/2" NPT external thread size and a M16 internal thread size.
Width1 in
ARRA CompliantContact Manufacturer
Description - InvoiceFLM ARSR, 1/2"M M16F
Harmonization Code7616995190
Lead Time30 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging0.25
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Master Pack DescriptionEach

Certifications

EU RoHS Indicator
Contact Manufacturer
