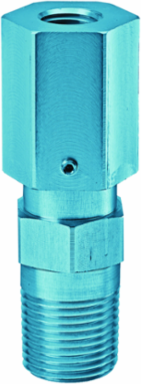

Killark KB1FA25 Aluminum Flame Arrestor - 1/2 Inch NPT Male/Female Threads, 5 Inch x 1 Inch x 10 Inch
- MPN: KB1FA25
- UPC: 783936012674
- PPN: HBL-KB1FA25
- UNSPSC: 39121321
CAD
$227.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
KB Series - Aluminum Flame Arrestor - Male/Female - External Thread Size1/2 Inch NPT - Internal Thread Size 1/4 Inch NPT
Features
- Suitable for Explosionproof and Dust-Ignitionproof environments.
- Copper-free aluminum.
- Light Blue Anodized Finish.
- The flame arrestor has a 1/2" NPT external thread size and a 1/4" NPT internal thread size.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 5 in
- Color
- Blue
- Special Features
- The flame arrestor has a 1/2" NPT external thread size and a 1/4" NPT internal thread size.
- Width
- 1 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- FLM ARSR, ALUM W/ NPT MALE/FEMALE
- Harmonization Code
- 7616995190
- Lead Time
- 30 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 0.25
- Series
- KB Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions5 in x 1 in x 10 in
Height10 in
ApplicationThe flame arrestor provides a means to connect gas analysis equipment and electro pneumatic devices' pipe or tubing system through the wall of an explosion-proof enclosure.
Size5 in x 1 in x 10 in
TypeFlame Arrestor
Nema Rating3, 4, 4X
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936012674
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
