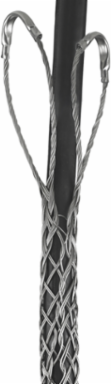

Hubbell Wiring Device-Kellems 02407001 Stainless Steel Support Grip, Double Eye, 0.75-0.99 Inch, 4,250 lb Breaking Strength
- MPN: 02407001
- UPC: 783585498560
- PPN: HBL-02407001
- UNSPSC: 39121719
CAD
$699.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Support Grips, Double Eye, Double Weave, Split Mesh, Lace Closing, Stainless Steel, 0.75-0.99"
Features
- Double eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Split Mesh- Lace Closing
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Cable Diameter Range
- 0.75 in-0.99 in
- Industry Standard(s)
- CSA Certified
- Application
- Double Eye
- Special Features
- Split Mesh- Lace Closing
- Type
- Double Eye
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Style
- Split Mesh, Lace Closing, Double Weave
- Description - Invoice
- HD DBL EYE SUP GRIP, .75-.99"; SS, LACE
- Harmonization Code
- 7326200090
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Hook or Beam Clamp
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Each - Pack Description
- Each
Approx Breaking Strength4,250 lb.
Width3.800 in
PerformanceMechanical - Approximate Breaking Strength - 4,250 (18,905);Mechanical - Working Load - 425 (1890.5) Lbs. (N)
Cable Size.75"-.99" (1.90-2.51)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesHeavy Duty
Carton - SCC-14 Next Lower Level Sub Pack00783585498560
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
