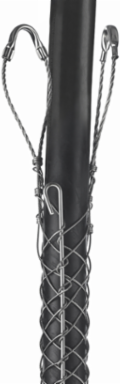

Hubbell Wiring Device-Kellems 02403005 Stainless Steel Double Eye Support Grip, 1.00-1.24 Inch, Split Mesh

Stainless Steel Double Eye Support Grip, 1.00-1.24 Inch, Split Mesh
Stainless Steel Double Eye Support Grip, 1.00-1.24 Inch, Split Mesh
  • MPN: 02403005
  • UPC: 783585310268
  • PPN: HBL-02403005
  • UNSPSC: 39121719

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$218.49/ EA

Description

Support Grips, Double Eye, Single Weave, Split Mesh, Rod Closing, Stainless Steel, 1.00-1.24"

Features

  • Double eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Eye assemblies provide eye reinforcement at support hardware
  • Split Mesh- Rod Closing

Specifications

Specifications

Approx Breaking Strength
2,650 lb.
Country of Origin
MX
Each - Width
5.000 in
Performance
Mechanical - Approximate Breaking Strength - 2,650 (11,788);Mechanical - Working Load - 265 (1178.8) Lbs. (N)
Cable Size
1.00"-1.24" (2.54-3.15)
Standard
CSA Certified
Style
Split Mesh, Rod Closing
Description - Invoice
DBL EYE, SUP GRIP, 1.0-1.2"; SS, ROD
Harmonization Code
7326200090
MSDS Flag
No
Material - Mounting Hardware
Screw Hook or Beam Clamp
Material
Stainless Steel
Base Unit of Measure
EA
Carton - Gross Weight per Pack
9.000 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Each - Pack Description
Each
Cable Diameter Range1 in-1.24 in
Width5.000 in
Industry Standard(s)CSA Certified
ApplicationDouble Eye
Special FeaturesSplit Mesh- Rod Closing
TypeDouble Eye
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesStandard Duty Series
BOX SIZE5.500x22.700x11.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585310268
Case Weight8.650 lb.
Lowest Level UOMEach

Certifications

EU RoHS Indicator
