Hubbell Wiring Device-Kellems

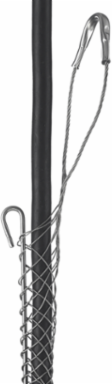

Hubbell Wiring Device-Kellems 02403038 Stainless Steel Support Grips, Offset Eye, 0.63-0.74 Inch, Split Mesh

Stainless Steel Support Grips, Offset Eye, 0.63-0.74 Inch, Split Mesh
Stainless Steel Support Grips, Offset Eye, 0.63-0.74 Inch, Split Mesh
Stainless Steel Support Grips, Offset Eye, 0.63-0.74 Inch, Split Mesh
  • MPN: 02403038
  • UPC: 783585310466
  • PPN: HBL-02403038
  • UNSPSC: 39121719

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$167.48/ EA

Description

Support Grips, Offset Eye, Single Weave, Split Mesh, Rod Closing, Stainless Steel, 0.63-0.74"

Features

  • Offset eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Eye assemblies provide eye reinforcement at support hardware
  • Split Mesh- Rod Closing

Specifications

Specifications

Country of Origin
Puerto Rico
Cable Diameter Range
0.63 in-0.74 in
Industry Standard(s)
CSA Certified
Application
Offset Eye
Special Features
Split Mesh- Rod Closing
Type
Offset Eye
General Literature Asset 2 Display Text
PULP & PAPER SOLUTIONS
Style
Split Mesh, Rod Closing
Description - Invoice
OFF EYE, SUP GRIP, .63-.74"; SS, ROD
Harmonization Code
7326200090
MSDS Flag
No
Material - Mounting Hardware
Screw Hook or Beam Clamp
Material
Stainless Steel
Base Unit of Measure
EA
Carton - Gross Weight per Pack
1.550 lb.
Carton - Pack Description
Carton
Carton - Total Units
10
Each - Pack Description
Each
Approx Breaking Strength1,950 lb.
Width2.000 in
PerformanceMechanical - Approximate Breaking Strength - 1,950 (8,674);Mechanical - Working Load - 195 (867.4) Lbs. (N)
Cable Size.63"-.74" (1.60-1.88)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesStandard Duty Series
BOX SIZE3.500x16.700x4.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585310466
Case Weight17.250 lb.
Lowest Level UOMEach

Certifications

EU RoHS Indicator
Yes

Downloads
