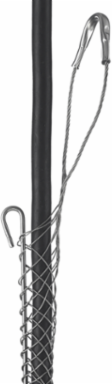

Hubbell Wiring Device-Kellems 02403044 Stainless Steel Support Grip, Offset Eye, 1.75-1.99 Inch
Hubbell Wiring Device-Kellems 02403044 Stainless Steel Support Grip, Offset Eye, 1.75-1.99 Inch
- MPN: 02403044
- UPC: 783585498522
- PPN: HBL-02403044
- UNSPSC: 39121719
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$273.35/ EA
Description
Support Grips, Offset Eye, Single Weave, Split Mesh, Rod Closing, Stainless Steel, 1.75-1.99"
Features
- Offset eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Split Mesh- Rod Closing
Specifications
Specifications
- Country of Origin
- United States
- Cable Diameter Range
- 1.75 in-1.99 in
- Industry Standard(s)
- CSA Certified
- Application
- Offset Eye
- Special Features
- Split Mesh- Rod Closing
- Type
- Offset Eye
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Style
- Split Mesh, Rod Closing
- Description - Invoice
- OFF EYE, SUP GRIP, 1.7-2.0"; SS, ROD
- Harmonization Code
- 7326200090
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Hook or Beam Clamp
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
Approx Breaking Strength4,375 lb.
Width3.500 in
PerformanceMechanical - Approximate Breaking Strength - 4,375 (19,461);Mechanical - Working Load - 437.5 (1946.1) Lbs. (N)
Cable Size1.75"-1.99" (4.44-5.05)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesStandard Duty Series
BOX SIZE4.000x28.500x6.000 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585498522
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
