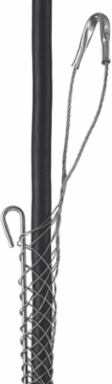

Hubbell Wiring Device-Kellems 02403045 Stainless Steel Support Grip, Offset Eye, 2.00-2.49 Inch, 8,350 lb Breaking Strength
- MPN: 02403045
- UPC: 783585310527
- PPN: HBL-02403045
- UNSPSC: 39121719
CAD
$311.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Support Grips, Offset Eye, Single Weave, Split Mesh, Rod Closing, Stainless Steel, 2.00-2.49"
Features
- Offset eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Split Mesh- Rod Closing
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Cable Diameter Range
- 2 in-2.49 in
- Industry Standard(s)
- CSA Certified
- Application
- Offset Eye
- Special Features
- Split Mesh- Rod Closing
- Type
- Offset Eye
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Style
- Split Mesh, Rod Closing
- Description - Invoice
- OFF EYE, SUP GRIP, 2.0-2.5"; SS, ROD
- Harmonization Code
- 7326200090
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Hook or Beam Clamp
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5
- Each - Pack Description
- Each
- NAICS Code
- 3359323114
Approx Breaking Strength8,350 lb.
Width16.000 in
PerformanceMechanical - Approximate Breaking Strength - 8,350 (37,143);Mechanical - Working Load - 835 (3714.3) Lbs. (N)
Cable Size2.00"-2.49" (5.08-6.32)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesStandard Duty Series
BOX SIZE4.000x32.000x16.000 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783585310527
Case Weight33.050 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
