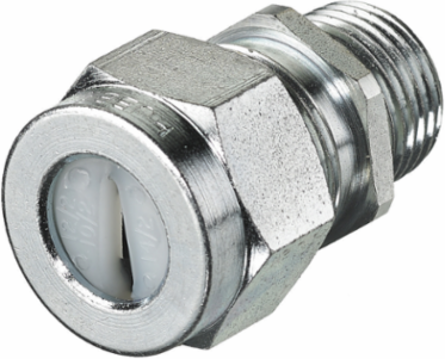

Hubbell Wiring Device-Kellems UFC0001ZP Kellems® Underground Feeder Cord Connector, 1/2 Inch Hub, IP66
- MPN: UFC0001ZP
- UPC: 783585211909
- PPN: HBL-UFC0001ZP
- UNSPSC: 39121431
CAD
$24.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems® Cord Connectors, Underground Feeder Connectors, .2"x.4" min, .25"x.55" max, ½", Steel
Features
- Zinc-plated underground feeder connectors
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hub Size
- 1/2 "
- Performance
- Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
- Conductor Range
- 0.2 x .4 in Min, 0.25 in x 0.55 in Max
- NEMA Rating
- IP66
- Special Features
- Standard Product
- Temperature Rating
- Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- General Literature Asset 3 Display Text
- FOOD & BEVERAGE SOLUTIONS
- Nema Rating
- IP66
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A52A490
- Cord Diameter
- 0.2x0.4 - 0.25x0.55 in
- Series
- Standard Duty Series
- BOX SIZE
- 4.600x1.300x8.300 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585211909
- Case - Total Units
- 450 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359323114
Width1.900 in
Industry Standard(s)UL Listed
ApplicationStraight Male
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Number of ConductorsSingle
StandardUL Listed
TypeUnderground Feeder
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Display Size1/2" NPT
Number Of ConductorsSingle
Description - InvoiceUGRD FEED CONN, .20"-.40"; 1/2"; STL
Harmonization Code7326908688
MSDS FlagNo
Material - Mounting HardwareLocknut or Tapped Opening
MaterialSteel, Zinc Plated
Base Unit of MeasureEA
Carton - Gross Weight per Pack10.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50 EA
Case Weight90.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
