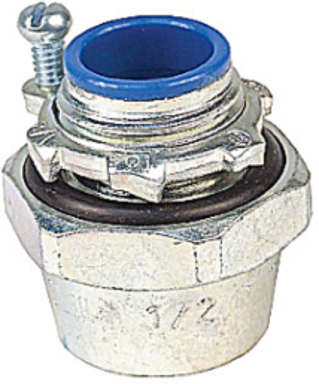

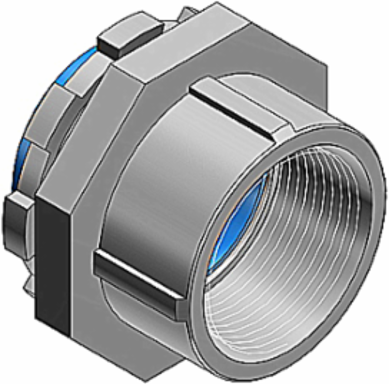

Thomas & Betts 403-TB Hub Connector
- MPN: 403-TB
- UPC: 078621029908
- PPN: T-B-403-TB
CAD
$56.97
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1 Inch Bullet Hub Connector, Steel Nylon Insulated for Use with Rigid/IMC Conduit
Features
- Rugged steel/malleable iron construction
- Tapered internal threads for water-tight/dust-tight union
- Threads relieved to prevent bottoming of conduit, ensuring sound assembly
- Recessed sealing ring at box end; sealing ring captivated
- Hardened steel/malleable iron/copper-free aluminum locknuts designed to provide high quality ground continuity; extended reach of locknut permits clamping on thin boxes and enclosures
- Insulated throat, insulates conductors, prevents abrasion and thinning of conductor insulation, reduces wire pull effort
- To positively bond conduit to box or enclosure.
- Suitable for hazardous locations use in Class I, Division 2; Class II, Division 1&2; Class III, Division 1 & 2 per NEC 501-4(b); 502-4 (a) and 503-3 (a).
- Suitable for hazardous locations use in Class II, Groups E, F, G & Class III locations per CEC 18-202; 18-252; 18-302; 18-352.
- When used with neoprene O-ring, provides watertight threaded hub on enclosures
- UL Listed 105 degree C
Specifications
Packaging
| Inner Quantity | 5 |
|---|---|
| Weight Uom | 36 lbs. per 100 |
| Outer Quantity | 25 |
|---|
European Specifications (ETIM)
| ETIM | EC001180 Screw connection for protective metallic hose |
|---|---|
| Model | Straight |
| Construction type | Internal thread |
| Thread type | NPT |
| Material housing | Steel |
| Approved in combination with protective conduit CSA | Y |
| Operating temperature | 0-+105°C |
| Nominal size in inch | 1 inch |
|---|---|
| Revolving thread | N |
| Connection type screw connection to housing | Thread |
| One-piece | N |
| Surface protection | Other |
| Approved in combination with protective conduit UL | Y |
North American Specifications (UNSPSC)
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| Brand Name | T&B |
| Special Features | Rain Tight and CSA Certified Watertight and Dust Tight |
| Standard | UL E23018, CSA |
| Material | Aluminum |
| IGCC | 4441 Electrical fittings |
|---|---|
| Type | Hub Connector |
| Application | To Connect Threaded Metal Conduit to a Threadless Opening in a Box or Enclosure |
| Size | 1 Inch |
| Temperature Rating | UL Listed 105 Degrees C |
