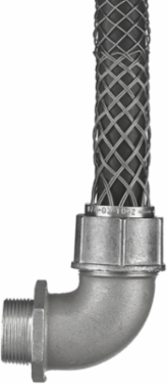

Hubbell Wiring Device-Kellems 074011045 Deluxe Cord Grips, 90 Degree Male, 1.000-1.125 Inch, 1.50 Inch NPT
- MPN: 074011045
- UPC: 783585322995
- PPN: HBL-074011045
- UNSPSC: 39121431
CAD
$527.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Deluxe Cord Grips, 90 Degree Male, 1.000-1.125", 1.50" with Mesh
Features
- Stainless steel mesh is corrosion resistant
- Multiweave grip gives cable arc-of-bend control
- Endless weave provides easy cable/flexible conduit installation
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 4.000 in
- Performance
- Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2(Fitting);Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C;Environmental - Operating Temperatures - –30°F to +240°F (–34°C to +115°C);Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
- Conductor Range
- 1-1.125 in (2.54-2.86 mm)
- Number of Conductors
- Single
- Standard
- UL Listed
- Type
- 90 Degree Male Thread
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Cable Size
- 1.000"-1.125" (2.54-2.86)
- Number Of Conductors
- Single
- Thread Size
- 1 1/2" NPT
- Description - Invoice
- 90 MALE, DCG, 1.0-1.1"; 1.50" W/MESH
- Harmonization Code
- 7326200090
- MSDS Flag
- No
- Material - Mounting Hardware
- Locknut or Tapped Opening
- Series
- Deluxe Cord Grips Series
- BOX SIZE
- 3.250x22.250x5.250 (in)
- Carton - Number of Sub Packs
- 4
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585322995
- Case - Total Units
- 24 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359323114
Cable Diameter Range1.000 in-1.125 in
Industry Standard(s)UL Listed
Application90 Degree Male- Form 5
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
Special FeaturesStandard Product
Temperature RatingMinimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
General Literature Asset 1 Display TextTray Cable Cord Connectors FAQ
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Display Size1 1/2" NPT
StyleFor Insulated Cables
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
MaterialAluminum Fittings, Stainless Steel Mesh
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.400 lb.
Carton - Pack DescriptionCarton
Carton - Total Units4 EA
Case Weight20.400 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
